Discover the Yoeleo R12 2023:

The Ultimate Road Bike for Performance and StyleThe Yoeleo R12 2023 carbon road bike redefines performance, innovation, and style for avid cyclists and passionate riders alike. With a multitude of unique selling points and cutting-edge features, the R12 offers an unparalleled cycling experience. In this comprehensive guide, we will delve into the standout features that make the Yoeleo R12 2023 the perfect road bike for every rider.

Aerodynamic design:

The Yoeleo R12 2023 features a sleek, aerodynamic frame design, reducing drag and allowing for faster speeds on the road.

Enhanced Carbon Fiber Lay-up for Optimal Stiffness :

Experience the perfect balance of stiffness and lightweight performance with the R12's enhanced carbon fiber lay-up. This upgraded feature offers increased rigidity without adding extra weight, ensuring a responsive and nimble ride on every terrain.

ProRoute Cable System for a Clean Look and Safety

The R12's internal cable routing system, known as the ProRoute system, is designed to accommodate both mechanical and electronic groupsets. This innovative feature keeps your cables tucked away and protected, resulting in a clean, streamlined appearance and reduced maintenance.

Beautiful Frame Curves for a Visually Appealing Aesthetic

The R12's elegant frame design not only offers performance benefits but also adds a visually appealing aesthetic to the bike, making it stand out from the crowd.

Advanced Paint Job for a Modern and Stylish Look

The R12 2023 model features a modern, stylish paint job that enhances the bike's visual appeal and highlights its innovative design features.

R12 DB Scheibenbremsen-Rahmenset
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Scheibenbremsen-Rahmenset
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO

R12 DB Scheibenbremsen-Rahmenset

$1,136.00

Rahmensatz: R12 DB Rahmen+Gabel+Lenker+Sattelstütze

Rahmengrößen: 43cm,47cm,50cm,52cm,54cm,56cm,59cm

Lenkergröße: 380mm,400mm,420mm,440mm

Vorbau-Größe: 90mm/100mm/110mm/120mm

Material: Hochmodulige Toray 800 Kohlefaser

Farbe:  Hemidium / Emerald Green / Custom Painting

Carbon-Gewebe: UD

Kompatibel mit Gruppen: Maschine und Di2 kompatibel

TRETLAGER: BB386

Ausfallende hinten: 12*142 Thru Axle

Schaltwerksbügel: Auswechselbar

Steuerrohr: 1-1/2"

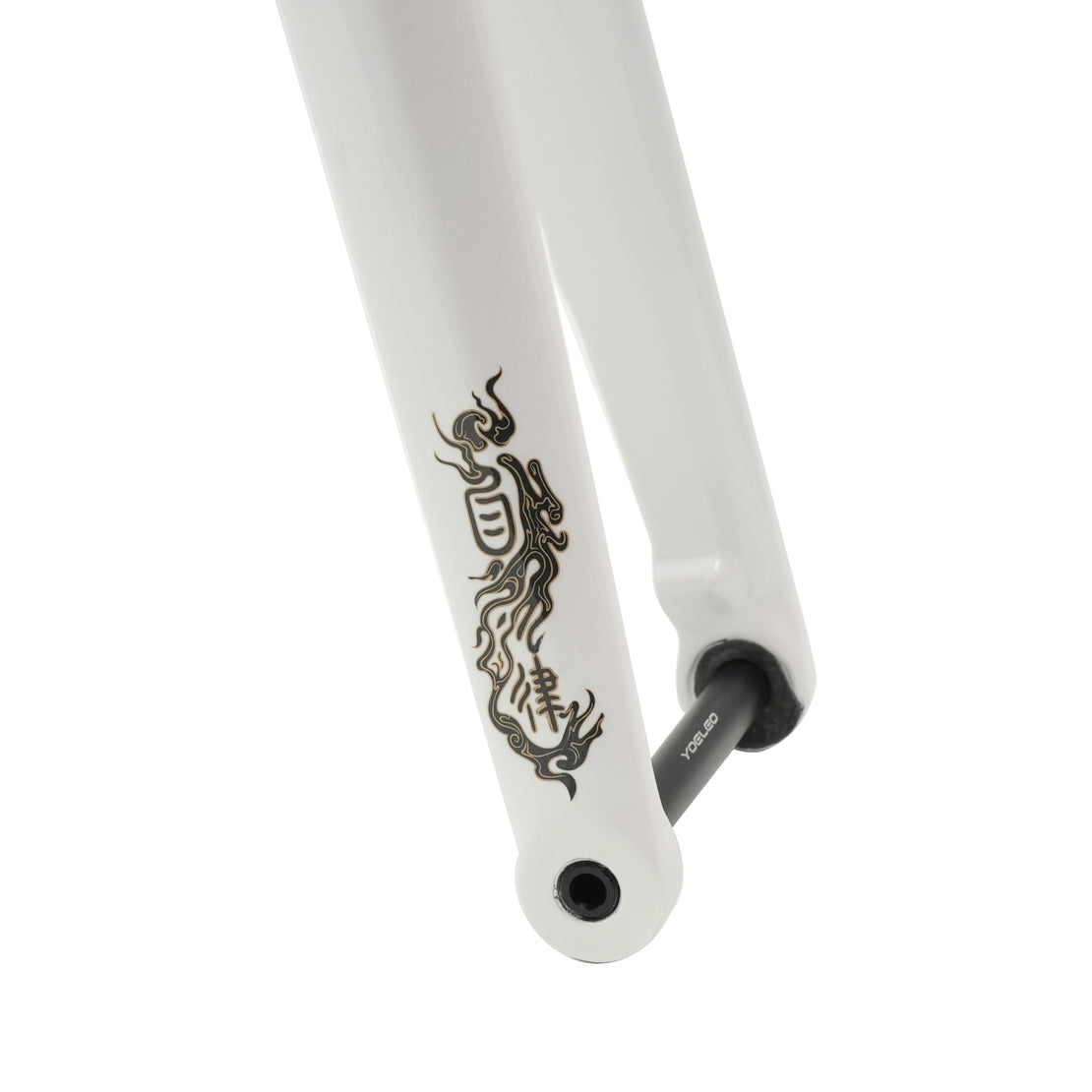

Gabel: Aero Scheibenbremsgabel, Flat Mount, 12*100 Thru Axle

Gabelversatz: 45˚

Bremse: Flat Mount Scheibenbremse

Maximale Reifenbreite: 32mm

Kabel: Internes Kabel

Rahmen Gewicht: 950g(50cm)

Gewicht der Gabel: 390g

Zubehör: Lenkerabstandshalter 3mm: 1PC, 5mm: 1PC, 10mm: 2PCS, Steuersatz-Lagerdeckel 10mm: 1PC

Vorderradachse 1PC, Hinterradachse 1PC

Begrenztes Fahrergewicht: 110KG

Garantie: 3 Jahre

Geometrie:

Größe Dimension A B C D E F G H I J K L M
43CM 430 505 370.6 501.6 100 75° 70.5° 72 415 572.9 977 43 371
47CM 450 516 375.9 505 100 74.5° 71.5° 72 415 570.7 974.8 43 371
50CM 470 528 378.6 520.9 115 74° 72° 72 415 574.2 978.3 43 371
52CM 490 540 381 536.9 130 73.5° 72.5° 72 415 577.1 981.3 43 371
54cm 510 552 386 550 145.7 73° 73° 72 415 583.5 987.6 43 371
56CM 530 567 388.2 567.2 160 72.5° 73° 72 415 588.9 993.2 43 371
59CM 560 582 393 581.6 175 72° 73° 72 415 598.1 1002.4 43 371



Größe & Passform:

Die unten stehenden Tabellen zeigen unsere empfohlenen Größen basierend auf der Körpergröße, aber es gibt einige andere Faktoren, wie Arm- und Beinlänge, die eine gute Passform bestimmen.

Aus diesem Grund gibt es bei unseren Empfehlungen einige Überschneidungen.

Größe XXS
43CM
XS
47CM
S
50CM
M
52CM
L
54CM
XL
56CM
XXL
59CM
Größe des Fahrerst 155-163CM 160-168CM 165-173CM 170-178CM 175-183CM 180-188CM 185-193CM
