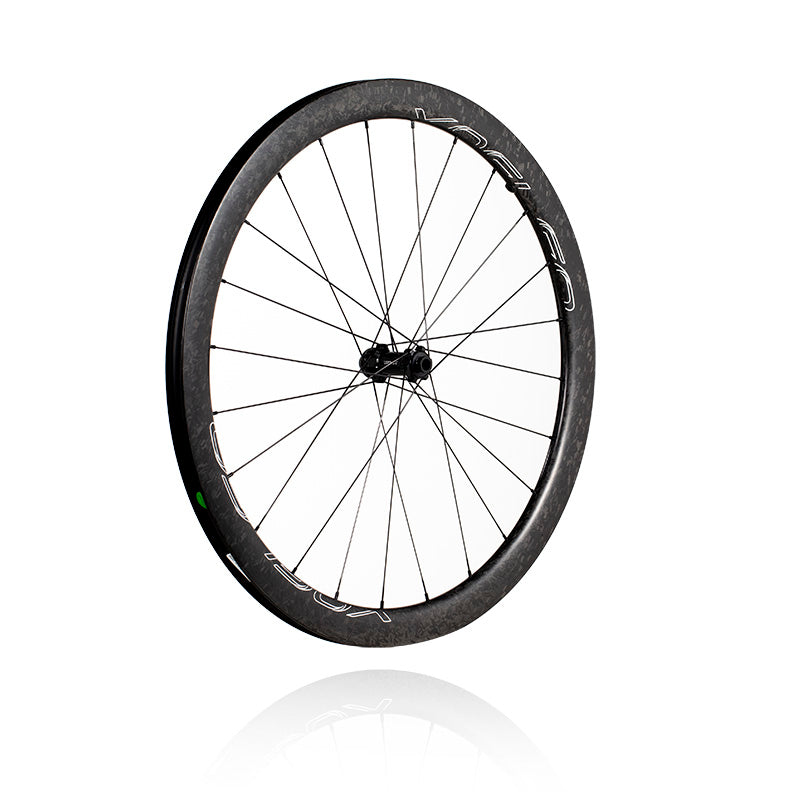

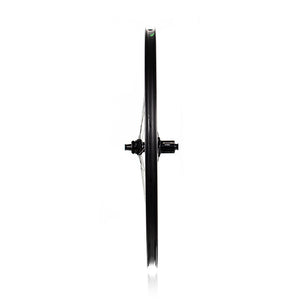

SAT C45|45 DB PRO Offset CX/Gravel Wheelset

Regular price $899.00

Unit price per

Wheels For: 700C CX/Gravel Bikes

Decal Color: Grey Glossy

Weave Finish: Marble Matt

Rims Material: Carbon Fiber T800 WITHOUT Brake Track

Rims Type: Clincher/Tubeless

Rims Depth: 45mm

Rims Width: 30mm  Inner Width: 22mm

Rim Shape: U Shaped

Rim Weight: 450g+/-15g



Hubs: YOELEO 230 SP CL-DB Ratchet System Hub 52T

Hubs Weight: 115g+200g

O.L.D:

Front QR*100mm, 12*100mm Thru Axle or 15*100mm Thru Axle,

Rear QR*135mm, 12*135mm Thru Axle or 12*142mm Thru Axle

Cassette Body: For Shimano 10.11 speed (Contact us if you need spacers to run 9/10 speed) / Sram XDR

Spokes: Black Pillar WING 20 Aero Spokes

Spoke Count: Front 24H, Rear 24H

Nipples: Black Sapim Secure Lock Nipples


Wheelset Weight: 1556g+/-15g

Including Accessories:

Extra Spokes(2pcs)

Valve Extenders(2pcs)


Recommended Tire Width: 28mm to 47mm

Tube Compatibility: Presta

Rider Weight Limit: 231lbs /105kg

Max Tire Pressure Limit: 90PSI

Warranty: 3 Years

Certification: UCI Approved

SPEED-DRIVEN AERO

Over the past decade, Yoeleo has been committed to relentless improvement. Our efforts have resulted in notable upgrades such as wider rims for road and gravel, a simple sealed tubeless design compatible with both clincher and tubeless setups, and a switch from V to U-shaped profile rims. These enhancements culminate in superior aerodynamics, speed, and stiffness, all achieved through rigorous testing with our team of racers and customers.

New 2023 PRO WHEELS

Turbocharge your speed and be PRO.

EXPERIENCE THE YOELEO SAT TECHNOLOGY

SAT technology is the process where we build the wheels using rims with no spoke holes on the tire bed, so it will not damage the original carbon weave. SAT provides wheels with 30% stronger, effortlessly absorbing impact, 10% more inflation capacity, and better performance on bumps and potholes.

TUBELESS TECHNOLOGY

Compatible with both clincher and tubeless tires

No rim sealing tapes needed for tubeless tires with Yoeleo SAT technology wheelset

Faster and easier to install tubeless tires

OFFSET RIM DESIGN

Offset wheels are asymmetrically profiled wheels which are different from regular bicycle wheels due to their spoke holes drilled offset from the center of the rim.

Benifits of YOELEO offset wheels are :
1.More durable The spokes in an offset wheel will be at a higher tension compared to a regular symmetric wheel, so an offset wheel will need less re-truing.

2.Increased lateral stiffness & vertical compliance Reducing the severity of the spoke angle on the drive side boosts lateral wheel stiffness while also improving vertical compliance for increased control.

3.Wider rims Wider rim or a wider tire or both, you don’t need to pressure your tires as high as in a narrower one to support your weight. Lower pressure makes the ride more comfortable,can take from 28c-47c tires

U-SHAPED RIM DESIGN

Yoeleo has been developing and continually improving on its wheelset design since 2007. Through relentless design optimization, customer feedback, and research, Yoeleo has developed a highly advanced U-shaped profile that offers numerous advantages. Yoeleo designed rim profiles provide excellent stability in crosswinds while offering industry-leading performance and speed.

FRESH LOOKS, MORE PERFORMANCE

Glossy grayish decals with matte marble carbon-finished design to amp up the visuals of your bicycle.
Clean and sleek rims with no painting and clear coat that reduces the overall weight of the wheels.

DISC BRAKE RIM DESIGN

Super Light T800 Carbon Fiber
Nicer Looking without Brake Track
Better Aerodynamic

RATCHET SYSTEM TECHNOLOGY

YOELEO 230 SP Ratchet System Hub 52T

The ratchet system technology with 52T which features high-precision star ratchets, guarantees top performance and reliability. The no-tool concept allows extremely simple and quick maintenance.

STRAIGHT PULL TECHNOLOGY

YOELEO 230 SP Ratchet System Hub 52T

The term Straightpull refers to spokes with no bend at the head. This design allows for an ideal strength to weight ratio when compared to conventional spokes. Due to their more precise alignment and direct trajectory, straight-pull spoke technology creates a stiffer, more responsive wheel.

ANTI BITE GUARD TECHNOLOGY

YOELEO 230 SP Ratchet System Hub 52T

ABG stands for Anti Bite Guard, it is a piece of steel spline fitted on the cassette body, strong enough to significantly reduce or completely remove the problem with bitten/damaged freehubs body by cassette rotational force.

THE FASTEST CARBON WHEELS

Yoeleo carbon wheels perform as well or better than competing brands in independent tests in a variety of conditions

THE FASTEST CARBON WHEELS

Data from test in wind tunnel (tested at 50KM/H)

3 YEARS OR 5 YEARS WARRANTY

Durlable, Afforable, Quality Wheelset We offer 3years quality warranty for the wheels including the hubs by YOELEO 230 SP Ratchet System Hub 52T.

Optional for 5 Years

YOUR SAFETY MATTERS

While we sincerely hope you won't require it, we provide a 30% crash replacement discount on all handlebars and spares in the unfortunate event of a crash. Reach out to us, and we'll strive to assist you promptly, ensuring you can get back on the road and ride again as soon as possible.

YOELEO FACTORY RACING TEAM

Yoeleo Factory Racing Team is ready to seize victory in various UCI races all across the globe with the help of the all-in-one R12 combined with premium Yoeleo handlebars and wheelset.

Factory Tour on Yoeleo Carbon Bike Wheelset

UCI Approved
