G21 DB Gravel Bike Frameset
Normaler Preis $1,590.00
Einzelpreis pro
UCI Approved: Yes
Including Parts: G21 Frame, Fork, Handlebar, Seatpost
Frame:
Size: 45cm,49cm, 52cm, 54cm, 56cm, 58cm, 60cm
Material: High Modulus Toray 800 Carbon Fiber
Color: Arctic Ice / Desert Brown / Custom Painting
BB: BB T-47 inboard bearing
(pick the right BB-47 depending on your crank spindle size)
E.g. if you are using GRX crank : T47 BB inboard bearing for (shimano) 24mm spindle size.
SRAM DUB / DUB wide crank : T47 BB inboard bearing for SRAM DUB
SRAM GXP : T47 BB Inboard bearing for SRAM GXP
BB Width：85.5mm
Headtube: Straight 1-1/2”
Rear Dropout: 12*142 Thru Axle
Rear Derailleur Hanger: Replaceable
Frame Weight:

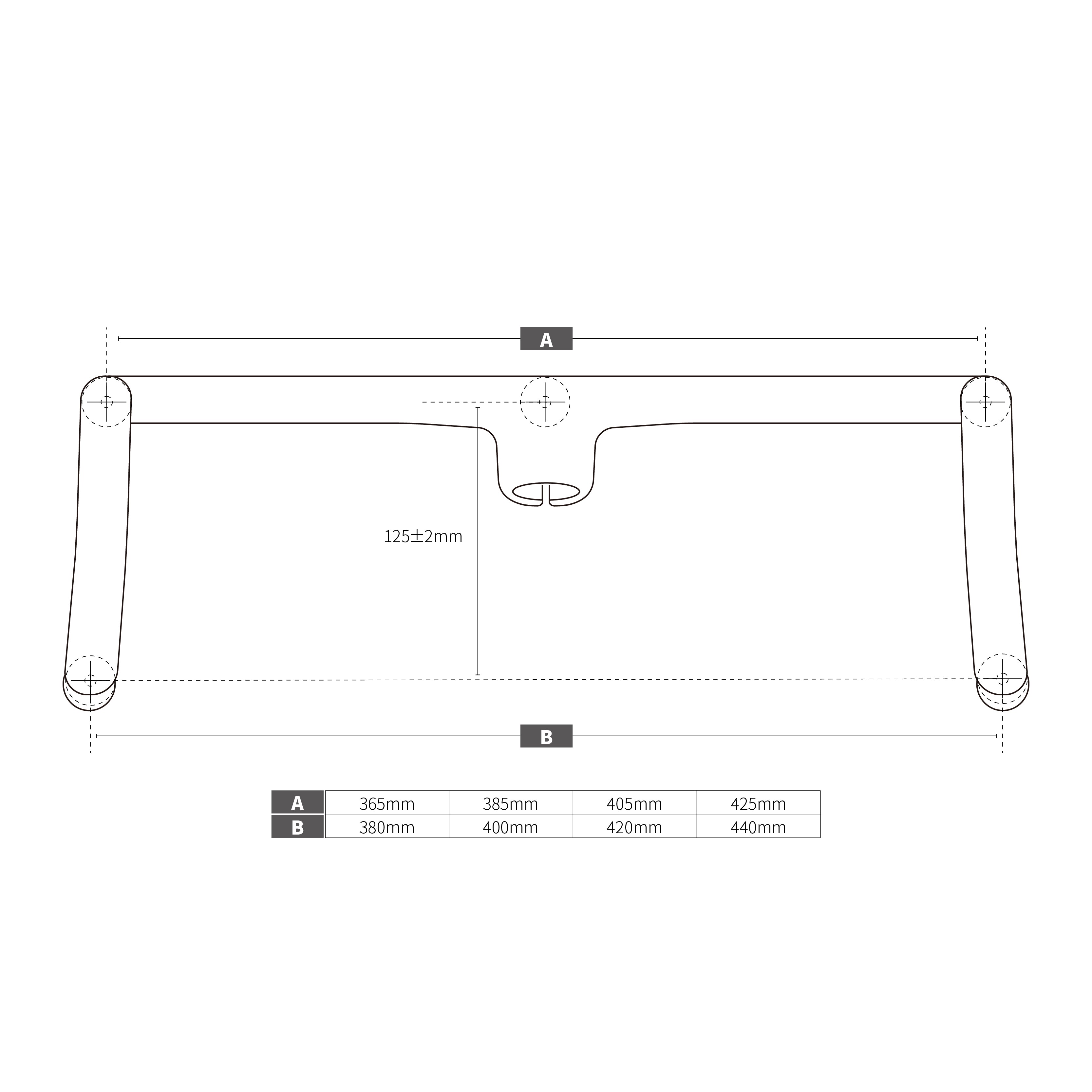

Handlebar: H21 carbon integrated handlebar
Handlebar Size: 400mm,420mm,440mm
Stem Size: 80mm/90mm/100mm/110mm
Handlebar Weight: 360+/-15g (420x90)
Fork & Seatpost:
Fork: 1 1/8" - 1 1/2", 12*100 Thru Axle
Fork Weight:
G21 Fork : 475+/-10(with holes)
G21 Fork: 465+/-10(without holes)
Seatpost Weight: 204+/-15g
Compatibility:
Chainring:
Single (Max of 42t for normal crank spindle and 44t for wide crank spindle)
Double (50-34t max with BB to Crank washer)
Brake Fitment: Flat Mount Disc
Cable Routing: Internal
Bottle Mounts : 4
Mudguard Compatible: Yes
Cargo Rack Compatible: Yes
Max Tire Width: 700X53mm , 650BX2.1”
Accessories:
Handelbar Spacers 3mm: 1PC, 5mm: 1PC, 10mm: 2PCS, Headset Bearing Cap 10mm:1PC
Front Axle: 1pc, Rear Axle: 1pc
Limited Rider Weight: 110KG
Warranty: 6 Years
A Game-Changer in the Market: Yoeleo G21
Riding into the future of gravel biking, Yoeleo unveils its newest masterpiece; the new and powerful G21. Packed with unique features and optimized for an unmatched riding experience, the G21 stands tall as a testament to Yoeleo's commitment to innovation, performance, and rider-centric design.
ProMoldCore Manufacturing Technology: The Future of Frames
The conventional manufacturing method that is still common practice with most companies today brings a lot of issues. Conventional methods causes undulations on the internals of the frame and even increases weight, making it difficult to achieve performance according to the specified carbon sheet specifications.Unlike traditional methods such as nylon bladders, ProMoldCore manufacturing technology allows for a more stable molding of the inside of the frame thanks to latex's flexibility and stretchability.We believe that inside out beauty applies for everything, especially for our framesets. By utilizing ProMoldCore technology, the outside and inside of a carbon road frame are of the same quality, resulting in an inner surface that is as smooth and wrinkle-free as the outer surface.The use of latex increases the pressure of the molded latex bag, smoothing the internal finish, improving the compressibility of the compound, reducing resin waste, and allowing for more complex shapes to be made.
Yoeleo ProRoute System
The ProRoute Stem System introduces dual mounting solution for internal cable routing, catering to both the complete internal cable routing (Y-ICR) and the semi-internal cable routing (S-YICR) with sleek, removable spacers. This design ensures hassle-free installation.
More Than Versatile
With the ability to accommodate tire sizes up to 53c, the G21 redefines versatility. You can effortlessly adapt to different terrains and conditions, amplifying G21's all-around performance and making it the only bike you'll ever need for any adventure.
Optimized Geometry for Unmatched Stability
Yoeleo G21's geometry is optimized for gravel and packed with features that will ensure stability on the road; a longer wheelbase, slack headtube angle, and shorter stem promises exceptional stability and comfort on even the most uneven terrains. G21 allows you to be in full control of the roads you're traversing no matter the conditions.
All-Terrain Capability
Any frame can take on any terrain, but G21 doesn't take on various terrain – it conquers all of them. Its robust construction and wide tire clearance allow it to run on anything, from smoothest roads to the toughest trails. Any frame can take on any terrain, but nothing like G21 does.
H25 Handlebar + ST1 Stem
Our standard handlebar for G21 is H21, it is integrated handlebar, we also offer the stem and bar option:
ST1 Stem + H25 handlebar.
If you want the ST1 stem+ H25 handlebar to replace the H25, please send us email after yo place the order.
Check More
RIDE WITH PRIDE
Our product comes with a 6-year warranty, providing you with confidence and assurance in its enduring quality and reliability.
YOUR SAFETY MATTERS
While we sincerely hope you won't require it, we provide a 30% crash replacement discount on all handlebars and spares in the unfortunate event of a crash. Reach out to us, and we'll strive to assist you promptly, ensuring you can get back on the road and ride again as soon as possible.
We always want to delivery the best products to our customers, we improved our G21 for 2023 to delivery the best performance
Check the video for more details
