R12 Disc Brake Bike Frameset

Let's understand our product better, scroll down to see your awesome choice

Yoeleo Sponsored Team - Cykeln

We have been sponsoring the Italian Cykeln team since 2016.
All team members are using Yoeleo SAT T60|88 carbon wheels.
In 2016, the team member Martino Poccianti set the fastest lap in Red Hook Crit Milano history.
His time of 1:29.576 was 2 seconds faster than the previous track record.
The average speed for this lap was a blistering 52kph.

Strict Quality Control

We have strict quality control process to ensure the excellent frameset quality.
1.Pedaling Fatigue Test : Load 1100N , 100000 Cycles
2.Vertical Fatigue Test: Load 1200N , 50000 Cycles
3.Horizontal Fatigue Test: Load 600N , 100000 Cycles
4.Vibration Fatigue Test: load ST:20KG,BB:40kg,HT:10kg , 30000 Cycles
5.Impact Test (Falling Mass): Falling height 212mm, farmar weight: 22.5 KG.
6.Rigid Test (Falling Frame): Load ST:30KG, BB:50kg, HT:10kg, 2 Cycles

How To Build

Get guidance on R12 cable routing from OZ Cycle Video.

R12 DB - 2021 Version

2021 R12 IMPROVEMENT
1. Fits Wider Tires: max 32c (28c for previous version)

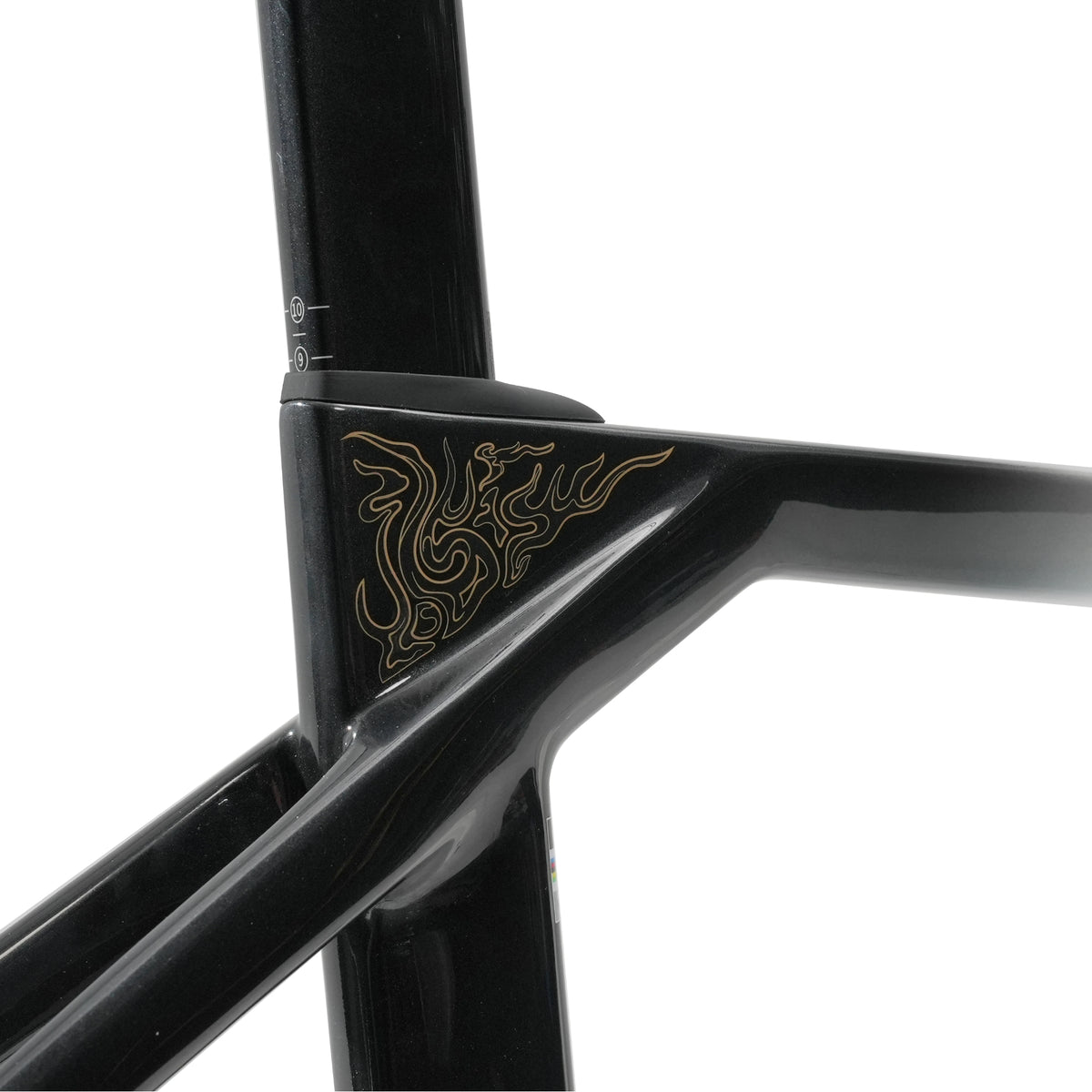

2. Hiding seat clamp inside top tube perfects frame appearance and integrity
3. Straight line design on top tube
4. Upgraded rear caliper mount with easier mounting process and better strength
5. New EPS+Latex frame molding tech makes frameset lighter and smoother for cable routing
If you are looking for a new frameset with a modern specification look no further. The R12 full carbon frame is the flagship model and is one of Yoeleo’s latest offerings. With responsive handling, all-round performance and a bias towards speed in its design. It is both compliant for those long days in the saddle while efficient for those rolling hills.

Video Review

1st ride review

Video Review

Detailed Review after 400km

R12 - TÜV CERTIFICATION

PASS ISO 4210 - 2:2015 CLAUSE 4.8 CYCLES
Yoeleo believes that quality assurance accompanies the development phase and is a significant part of the production. To make sure that you can enjoy using our new R12 bike for many years it is not sufficient to just conduct a quality check at a certain point of the production process.

Our R12 carbon framesets are German TÜV approved so you can ride them with total confidence that not only will they look fantastic, they're also SAFE to use.

The TÜV mark means you can be assured that you are buying a quality R12 that has been rigorously tested.

Certificates are set out on the left. Please click the report and take a moment to read them through.

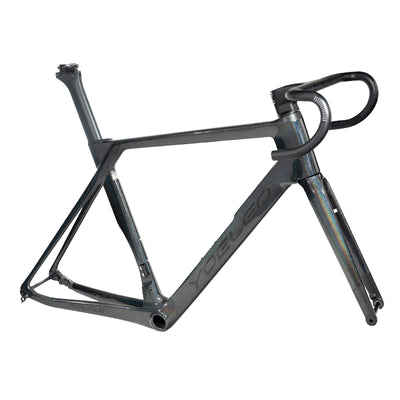

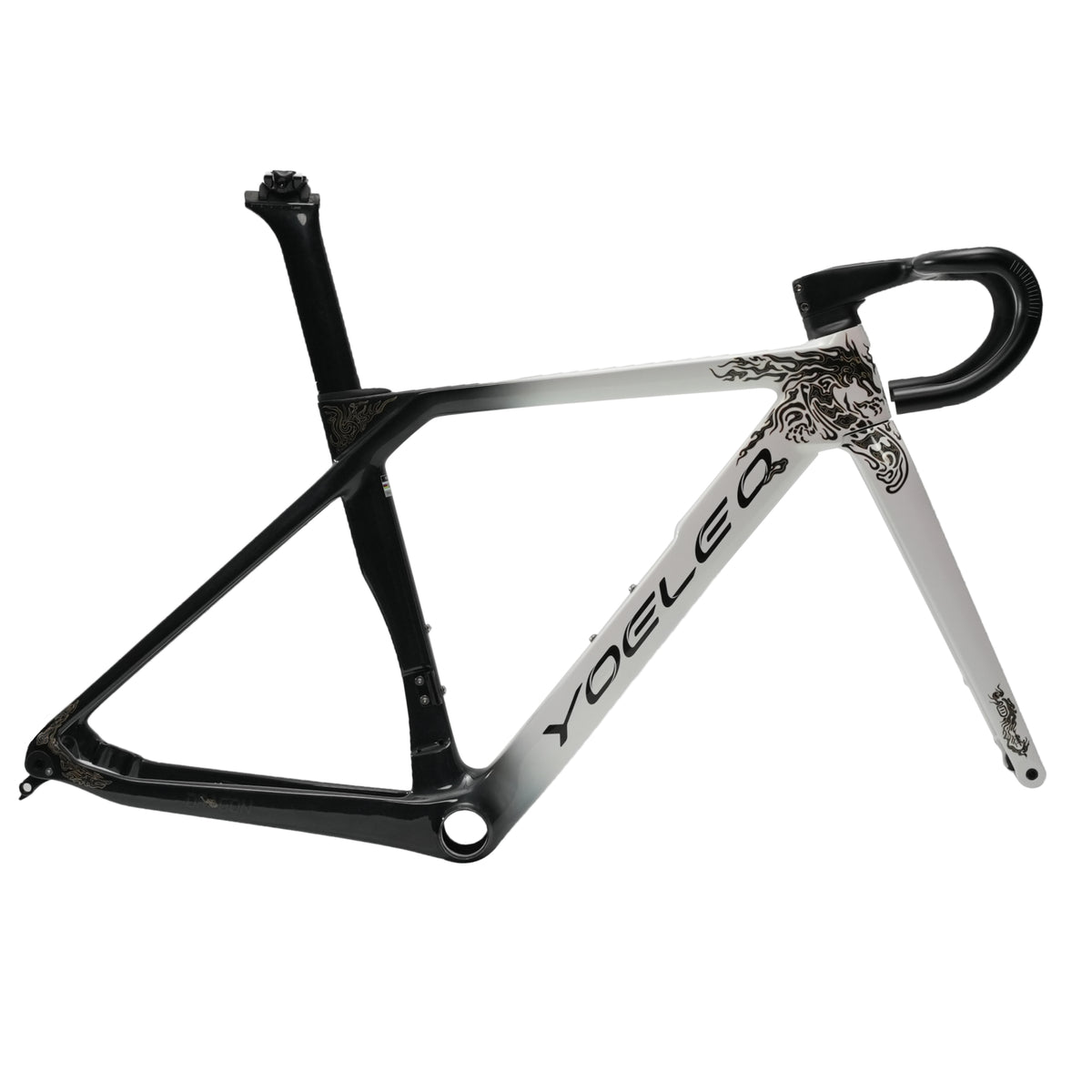

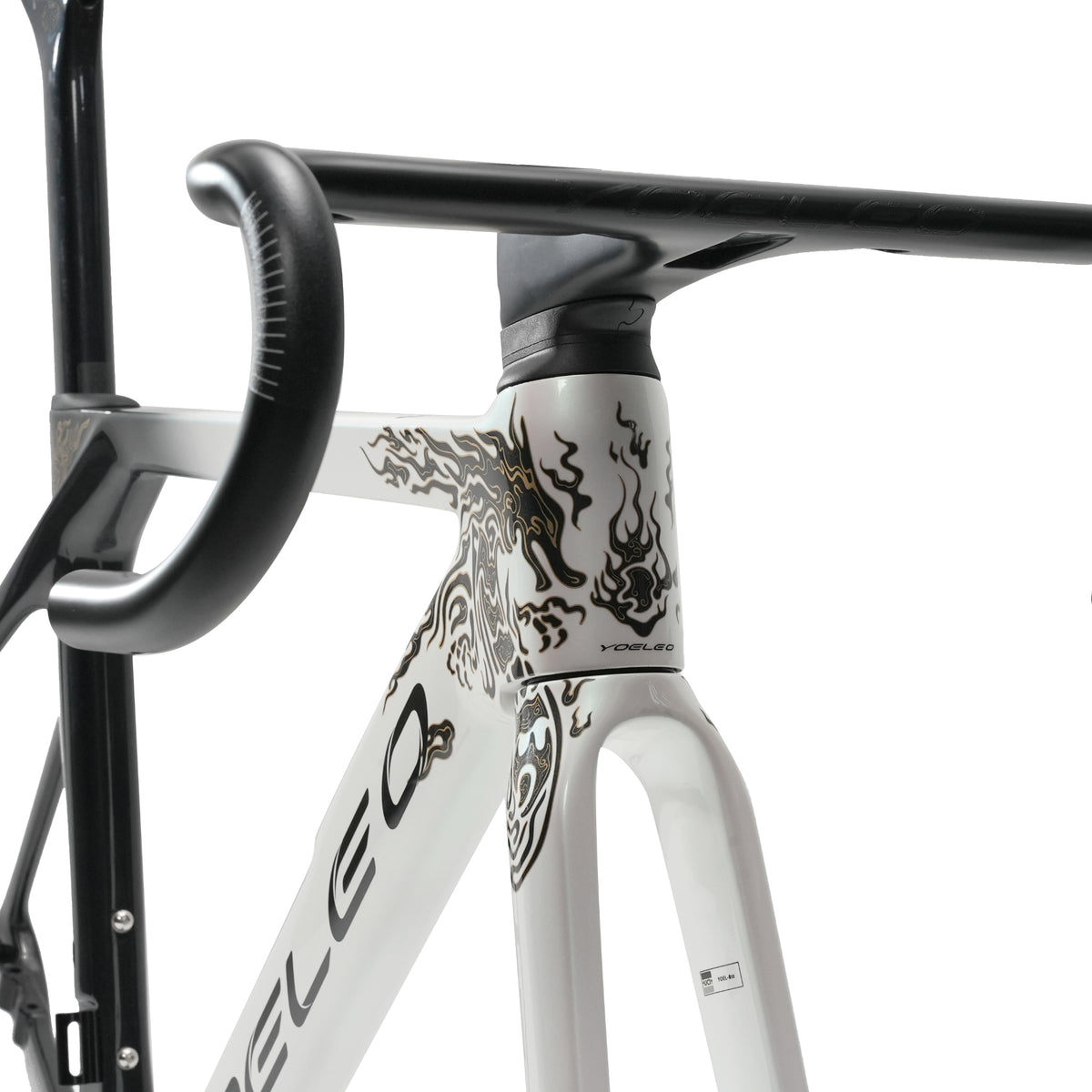

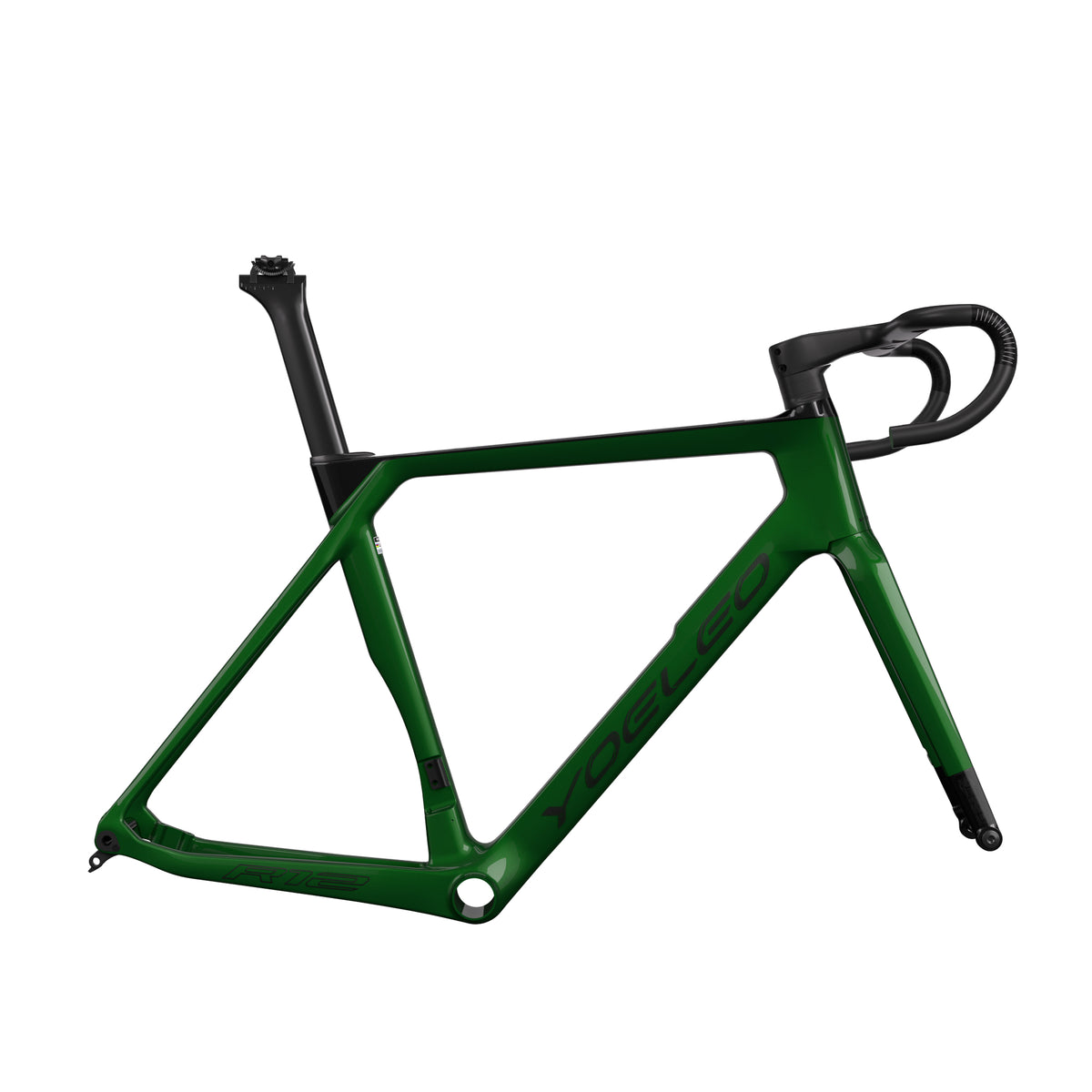

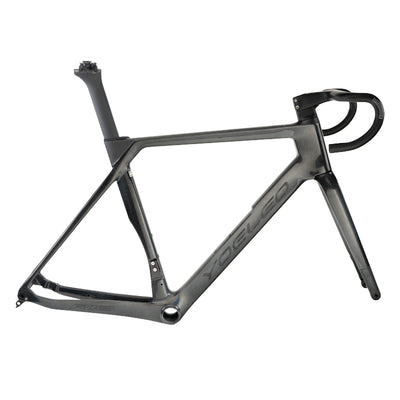

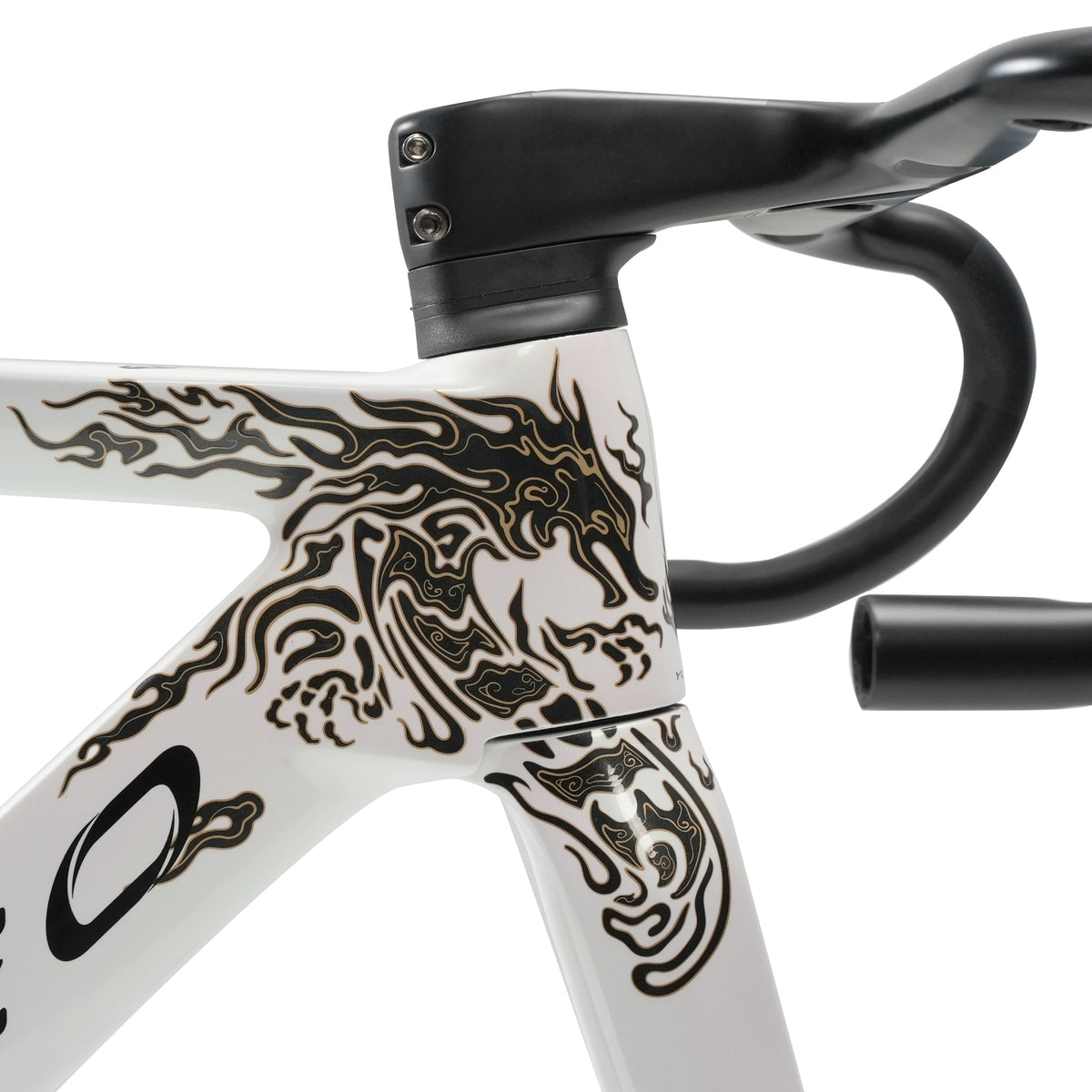

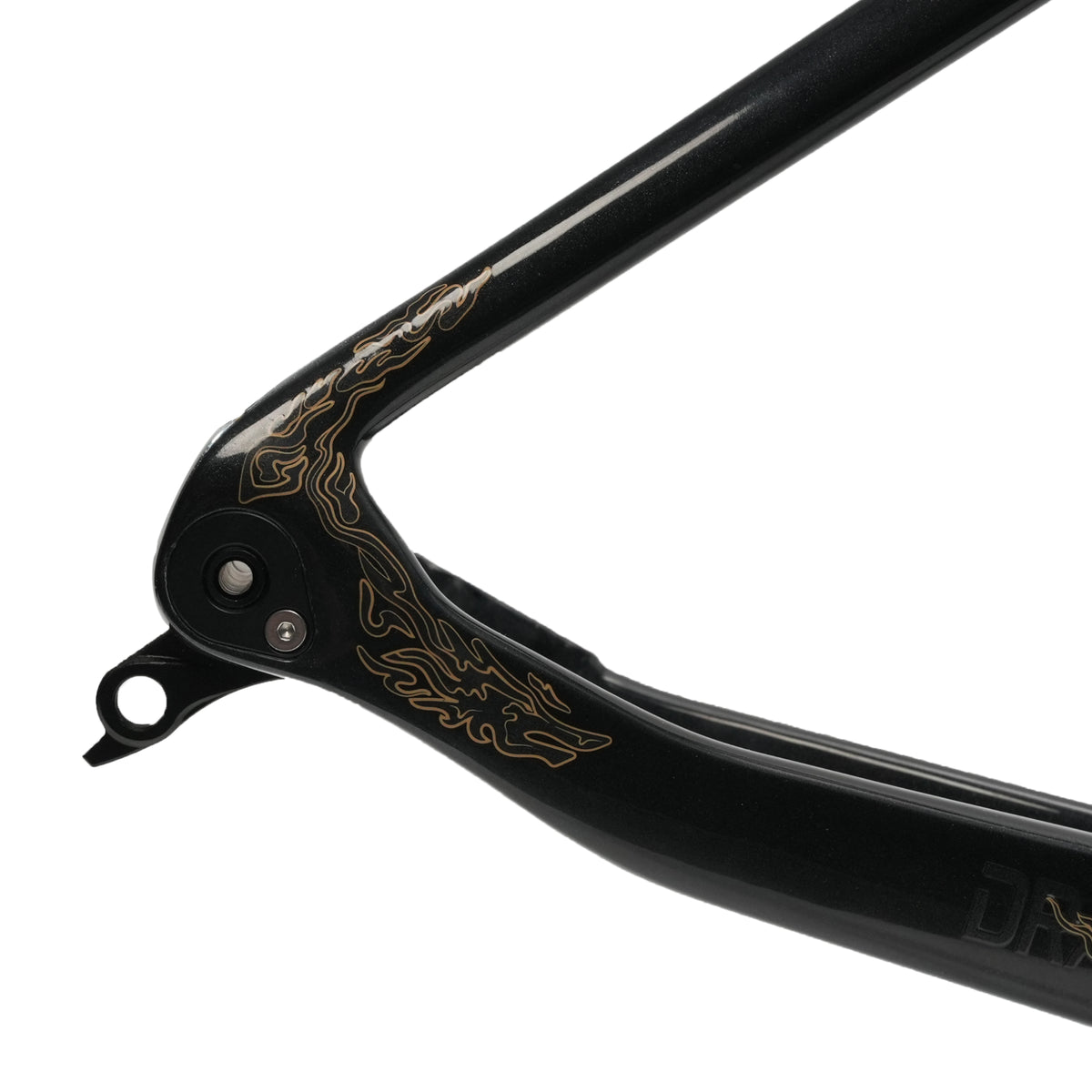

R12 Disc Brake Bike Frameset

R12 Disc Brake Bike Frameset - YOELEO
R12 Disc Brake Bike Frameset - YOELEO
R12 Disc Brake Bike Frameset - YOELEO
R12 Disc Brake Bike Frameset - YOELEO
R12 Disc Brake Bike Frameset - YOELEO
R12 Disc Brake Bike Frameset - YOELEO
R12 Disc Brake Bike Frameset - YOELEO
Load image into Gallery viewer, R12 Disc Brake Bike Frameset - YOELEO
Load image into Gallery viewer, R12 Disc Brake Bike Frameset - YOELEO
Load image into Gallery viewer, R12 Disc Brake Bike Frameset - YOELEO
Load image into Gallery viewer, R12 Disc Brake Bike Frameset - YOELEO
Load image into Gallery viewer, R12 Disc Brake Bike Frameset - YOELEO
Load image into Gallery viewer, R12 Disc Brake Bike Frameset - YOELEO
Load image into Gallery viewer, R12 Disc Brake Bike Frameset - YOELEO

Regular price $1,215.00 Sale price $1,350.00

Unit price per

Frame Size

Frameset: R12 Frame+Fork+Handlebar+Seatpost

Frame Sizes: 43cm,47cm,50cm,52cm,54cm,56cm,59cm

Handlebar Size: 380mm,400mm,420mm,440mm

Stem Size: 90mm/100mm/110mm/120mm

Material: High Modulus Toray 800 Carbon Fiber

Color: Misty Rose / Baltic Red / Arctic Yellow / Blue Spectrum / Golden Apache / Hemidium / Crimson Black

Carbon Weave: UD

Groupset Compatible: Machine and Di2 compatible

BB: BB386

Rear Dropout: 12*142 Thru Axle

Rear derailleur hanger: Replacable

Headtube: 1-1/2”

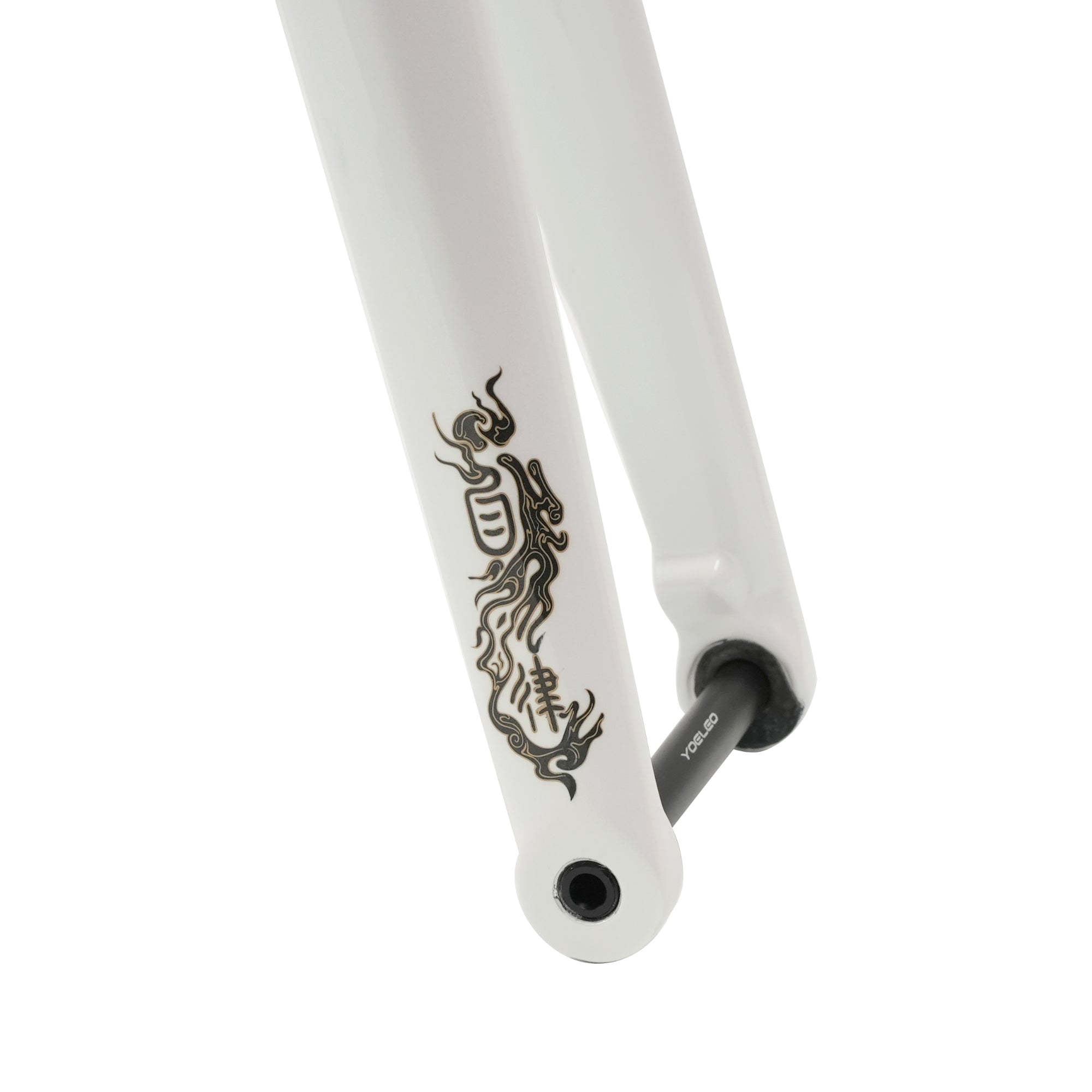

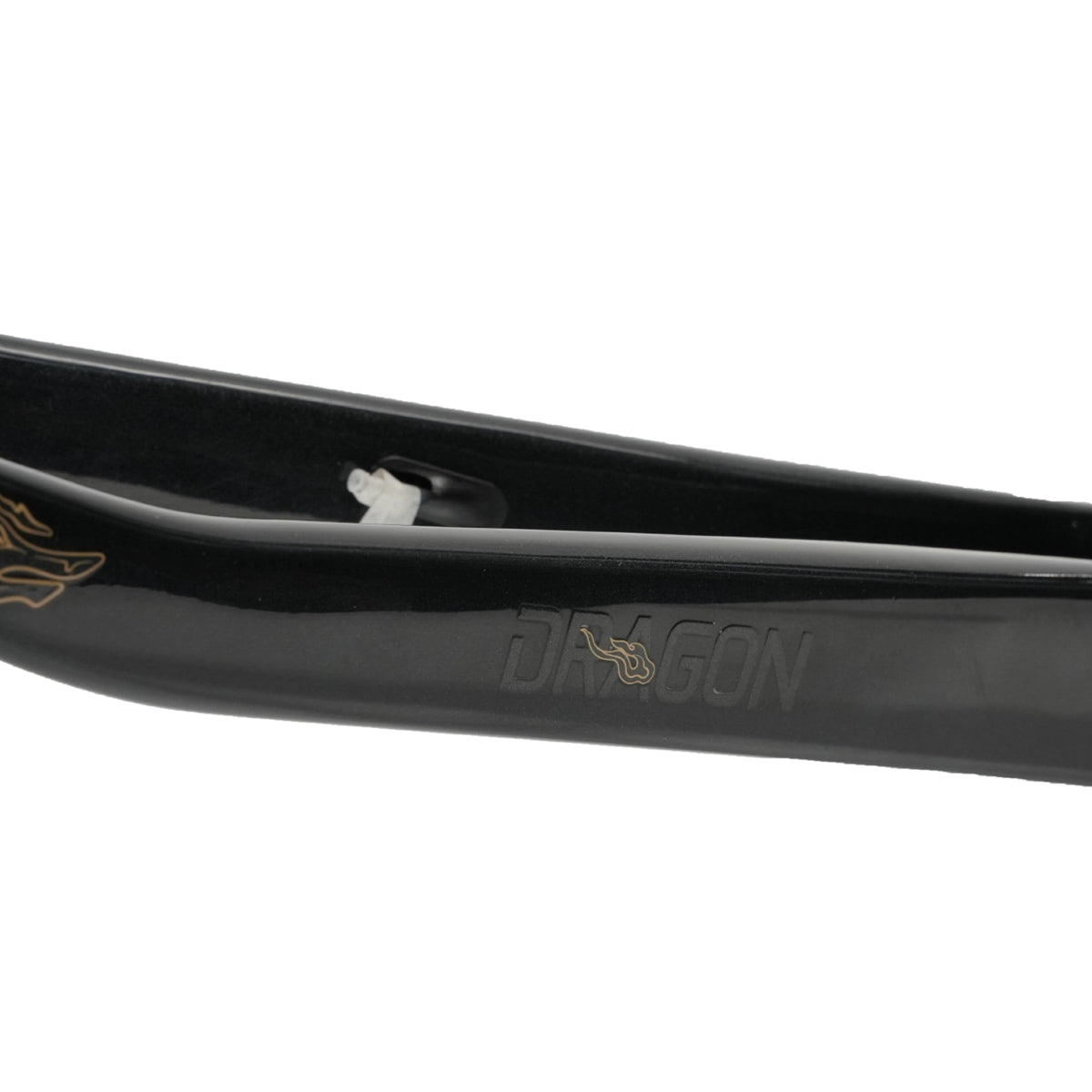

Fork: Aero Disc Brake Fork,Flat Mount,12*100 Thru Axle

Fork Offset: 45˚

Brake: Flat Mount Disc Brake

Max Tire Width: 32mm

Cable: Internal cable

Frame Weight: 950g(50cm)

Fork Weight: 390g

Accessories: Handelbar Spacers 3mm: 1PC, 5mm: 1PC, 10mm: 3PCS

                          Front Axle 1PC, Rear Axle 1PC

Limited Rider Weight: 110KG

Warranty: 3 Years

Geometry:

Size Dimension A B C D IS F G H I J TO L M
43CM 430 505 370.6 501.6 100 75° 70.5° 72 415 572.9 977 43 371
47CM 450 516 375.9 505 100 74.5° 71.5° 72 415 570.7 974.8 43 371
50CM 470 528 378.6 520.9 115 74° 72° 72 415 574.2 978.3 43 371
52CM 490 540 381 536.9 130 73.5° 72.5° 72 415 577.1 981.3 43 371
54cm 510 552 386 550 145.7 73° 73° 72 415 583.5 987.6 43 371
56CM 530 567 388.2 567.2 160 72.5° 73° 72 415 588.9 993.2 43 371
59CM 560 582 393 581.6 175 72° 73° 72 415 598.1 1002.4 43 371

Sizing & Fit:

The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.

That’s why you’ll see some overlap in our recommendations.

Size XXS
43CM
XS
47CM
S
50CM
M
52CM
L
54CM
XL
56CM
XXL
59CM
Rider Height 155-163CM 160-168CM 165-173CM 170-178CM 175-183CM 180-188CM 185-193CM

Worldwide Happy Customers

We have worldwide customers riding our R12 DB
