YOELEO
R11 VB Суперлегкий Шоссейный Фреймсет Под Ободные Тормоза
Одобрено UCI：Да

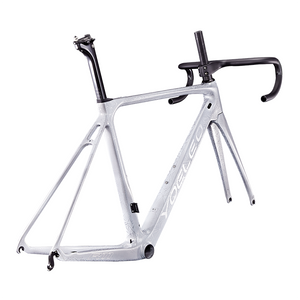

Фреймсет: Рама R11+Вилка+Руль+Подседельный штырь
Размер рамы: 46см,49см,52см,54см,58см
Размер руля: 380мм,400мм,420мм,440мм
Размер выноса: 90мм/100мм/110мм/120мм
Материал: Высокомодульное углеродное волокно T1000

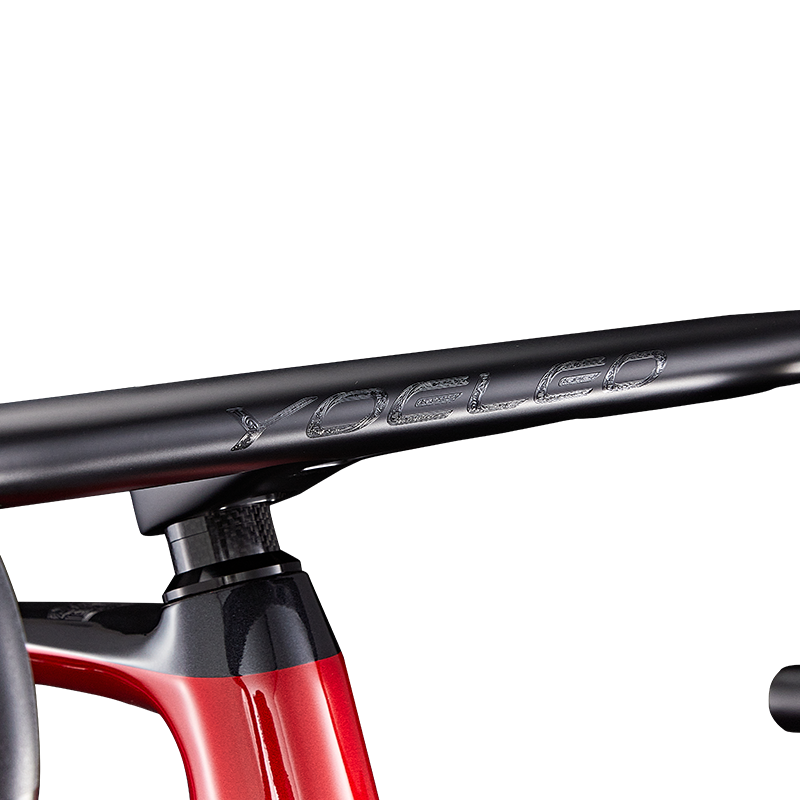

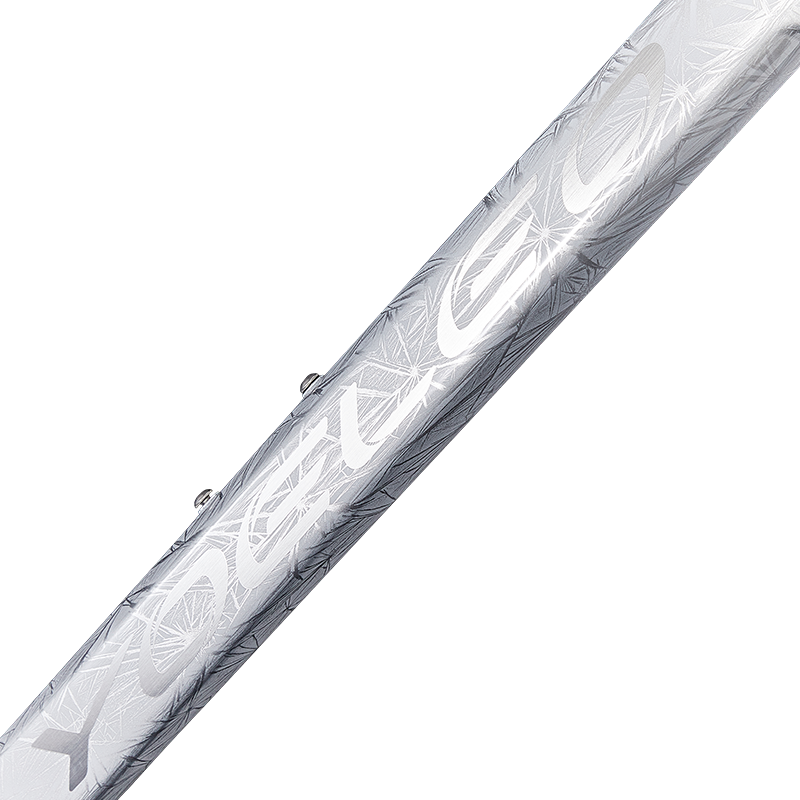

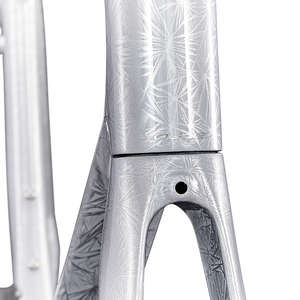

Цвет: Арктический мороз /Рубиново-красный / На заказ
Карбоновая отделка: UD
Совместимость групсета: Механический и Di2
Велосипедная каретка: BB86
Задний дропаут: 130*QR
Кронштейн(петух): Сменный
Головная труба: Коническая 1-1/8” к 1-1/2”

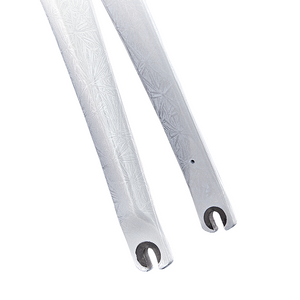

Вилка: None-Direct Mount Fork
Офсет вилки: 45˚
Тормоз: Тормозной суппорт ободной
Максимальная ширина шины: 30мм

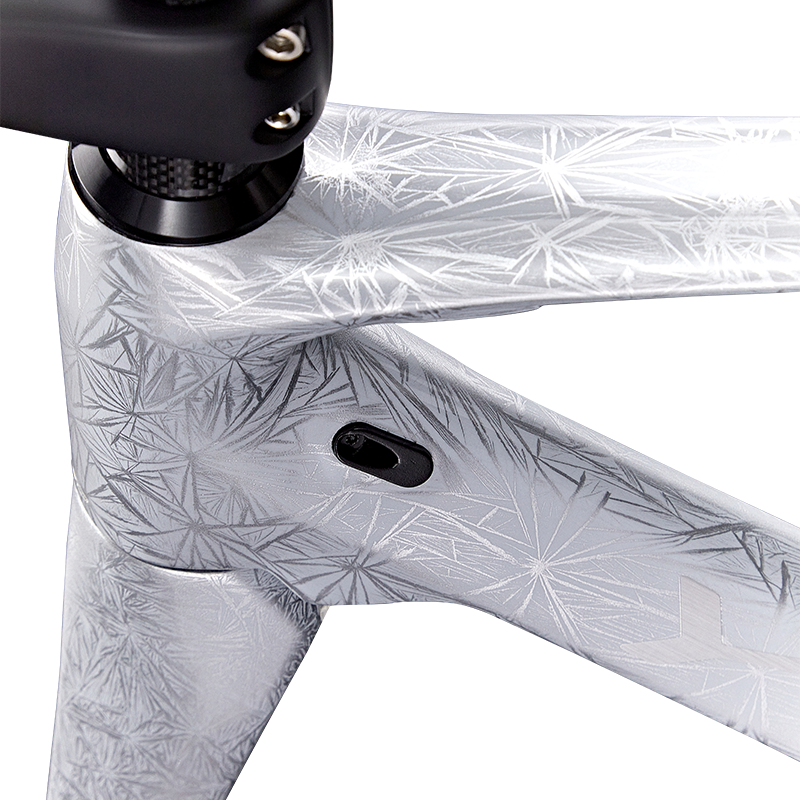

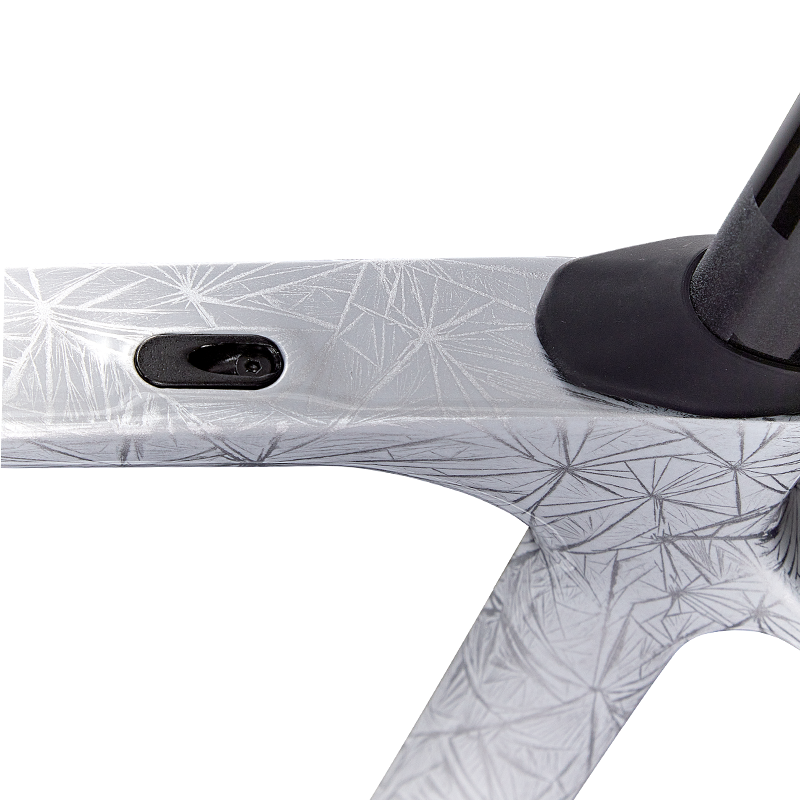

Прокладка: Внутренняя прокладка кабелей, частично внешняя
Вес рамы: 875гр+/-30гр (52см)
Вес вилки: 390гр+/-15гр
Вес подседельного штыря: 204гр+/-15гр
Дополнительные аксессуары: Колпачки для Di2 2шт
Запасной петух заднего переключателя 1шт
Максимально допустимый вес велосипедиста: 105KG
Гарантия: 6 лет
Warranty
Standard Coverage: 6-year warranty
Extended Option: Additional Lifetime warranty available for US$300
Crash Replacement Policy
YOUR SAFETY MATTERS
While we sincerely hope you won't require it, we provide a 30% crash replacement discount on all handlebars and spares in the unfortunate event of a crash. Reach out to us, and we'll strive to assist you promptly, ensuring you can get back on the road and ride again as soon as possible.
Ride like the wind with the Yoeleo R11! This frame is all about turning your hard work into fast rides. It's built to make sure every push on the pedals moves you forward, quickly. The R11 is super stiff, meaning you won't lose any power, and it handles like a dream. Whether you're climbing up a hill or speeding down one, you'll feel as sharp and confident as a pro racer. It's perfect for cyclists who want to get the most out of every ride, making sure you're always ahead of the pack.
WHY YOU’LL LOVE IT ?
Yoeleo R11, where every detail is honed for speed, efficiency, and victory on the road.
The Ultimate Racing Machine
R11 delivers an extraordinary blend of responsiveness, efficiency, and agility. Whether you're attacking steep climbs or navigating technical descents, this frame is your ticket to pushing boundaries and redefining what's possible on two wheels.
MORE COMFORT WITH EXTRA COMPLIANCE
Combining the D-shaped seatpost and our new slider saddle-clamp design, it will be much easier for you to adjust your position and be comfortable. This design will also keep you safe on gravel roads as it prevents the saddle from accidentally tilting, while giving you some more extra compliance.
OPTIMIZED CARBON LAYUP FOR UNMATCHED POWER TRANSFER
This stiff and responsive frame is an energy carrier, transferring your energy directly onto the ground precisely where you want it every time you stroke the pedal. With fast handling for the descent, it makes the perfect climbing partner.
LIGHT AS A FEATHER
The R11 is the most lightweight bike of our lines with just *850grms for the frame and 390grm for the fork (*size 54cm). This stiff and responsive frame is an energy carrier, transferring your energy directly onto the ground precisely where you want it every time you stroke the pedal. With fast handling for the descent, it makes the perfect climbing partner.
Frame technology
ProMoldCore Technology
The conventional manufacturing method that is still common practice with most companies today brings a lot of issues. Conventional methods causes undulations on the internals of the frame and even increases weight, making it difficult to achieve performance according to the specified carbon sheet specifications.Unlike traditional methods such as nylon bladders, ProMoldCore manufacturing technology allows for a more stable molding of the inside of the frame thanks to latex's flexibility and stretchability.We believe that inside out beauty applies for everything, especially for our framesets. By utilizing ProMoldCore technology, the outside and inside of a carbon road frame are of the same quality, resulting in an inner surface that is as smooth and wrinkle-free as the outer surface.The use of latex increases the pressure of the molded latex bag, smoothing the internal finish, improving the compressibility of the compound, reducing resin waste, and allowing for more complex shapes to be made.
Handlebar Tech
ProMoldCore and ProOne Technology
CRAFTED WITH PROMOLDCORE
In the same vein, the implementation of ProMoldCore in fabricating our handlebars has earned them renown for their stiffness. Experience hassle-free cable installation as the latex molds the bar's interior, ensuring a seamless cable routing installation with a sleek, smooth finish inside out.
ProOne Technology:
One-piece, no-bond manufacturing utilizes high-grade carbon fiber and YOELEO precision layup technique to eliminate the added weight and flex found in traditionally bonded bars.
R11 VB
Geometry & Size Recommendation
| SEAT TUBE LENGTH(mm) | TOP TUBE LENGTH(mm) | REACH(mm) | STACK(mm) | HEAD TUBE LENGTH(mm) | SEAT TUBE ANGLE | HEAD TUBE ANGLE | BOTTOM BRACKET DROP(mm) | CHAIN STAY LENGTH(mm) | FRONT CENTER(mm) | WHEELBASE(mm) | FORK RAKE(mm) | FORK LENGTH(mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 460 | 510 | 367.5 | 513 | 108 | 74.5° | 71.5° | 72 | 405 | 567.1 | 961 | 45 | 372 |
| 49 | 490 | 535 | 383.9 | 526 | 118 | 74° | 72.5° | 72 | 405 | 578.7 | 972.8 | 45 | 372 |
| 52 | 520 | 560 | 394.5 | 558 | 153 | 73.5° | 73° | 72 | 405 | 595 | 990.1 | 45 | 372 |
| 54 | 540 | 575 | 398.4 | 577 | 173 | 73° | 73.5° | 72 | 405 | 600.1 | 998.8 | 45 | 372 |
| 58 | 580 | 600 | 398.3 | 620 | 218 | 72° | 73.5° | 72 | 405 | 612.7 | 1011.5 | 45 | 372 |
| Size | Height Range |
|---|---|
| XS/46CM | 165cm-174cm |
| S/49CM | 172cm-180cm |
| M/52CM | 179cm-188cm |
| L/54CM | 187cm-194cm |
| XL/58CM | 192cm-200cm |
Be Yourself Project
Build your dream bike
Explore the magic of our gradation option that smoothly transitions between two color choices, creating a beautiful, gradual color fade on your frame.
Decals color options : Silver, White, Black.
It is for those who appreciate the dynamics of color interplay and aren't afraid to break the norms in pursuit of their individual style.
Decal color options: Silver, White, Black
Embrace simplicity with our single-color paint option. Make a statement with just one bold, vibrant color.
Decal color options : Silver, White, Black
Ask our designer to collaborate for fully customized design. Turning your artistic vision into a riding masterpiece
Our Core Values
At the core of our company lie the values of self-discipline and freedom, driving us forward and fueling our passion for cycling. We believe that cycling is more than just a sport; it's a way to push beyond our limits, discover our inner strength, and achieve greatness. Since the beginning, we've been committed to these values, delighting our customers with a variety of cycling disciplines designed with a fun and progressive lifestyle in mind.
R11 Gallery
Feel their happiness through these beautiful imagery
Product's FAQ
Please read our frequently asked questions for better riding experience.
Tire Compatibility
The R11 VB accommodates a 28c tire.
Select the right tire to enhance your riding experience. 28c is our recommended for balance between performance and comfort.
Bottom Bracket Option
Yoeleo R11 adopt BB86 or PF41.
A threaded together BB which has a thread in the middle is recommended for better alignment.
Stem and Handlebar Combo
Yes, you can use a stem and handlebar combo.
We recommend the Yoeleo ST1 stem with the H11 handlebar for a seamless integration.
