R12 DB Disc Brake Bike Frameset

R12 DB Disc Brake Bike Frameset - YOELEO
R12 DB Disc Brake Bike Frameset - YOELEO
Load image into Gallery viewer, R12 DB Disc Brake Bike Frameset - YOELEO
Load image into Gallery viewer, R12 DB Disc Brake Bike Frameset - YOELEO

Regular price $1,590.00

Unit price per

Frame Size

UCI Approved: Yes

Frameset: R12 Frame+Fork+Handlebar+Seatpost

Frame Sizes: 43cm,47cm,50cm,52cm,54cm,56cm,59cm

Handlebar Size: 380mm,400mm,420mm,440mm

Stem Size: 90mm/100mm/110mm/120mm

Material: High Modulus Toray 800 Carbon Fiber

Color: Hemidium / Emerald Green / Custom Painting

Carbon Weave: UD

Groupset Compatible: Machine and Di2 compatible

BB: BB386

Rear Dropout: 12*142 Thru Axle

Rear derailleur hanger: Replaceable

Headtube: 1-1/2” Straight

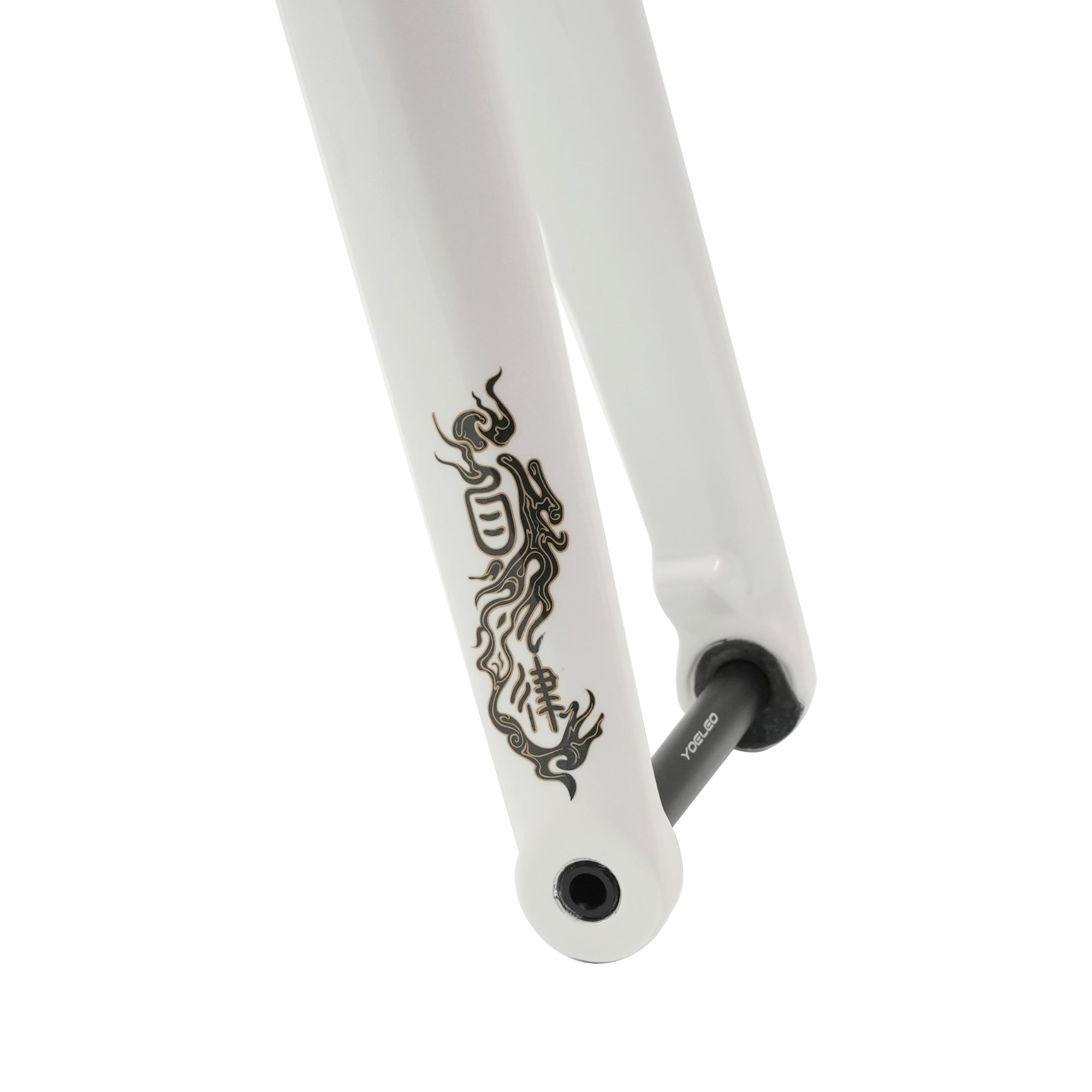

Fork: Aero Disc Brake Fork,Flat Mount,12*100 Thru Axle

Fork Offset: 45˚

Brake: Flat Mount Disc Brake

Max Tire Width: 32mm

Cable: Internal cable

Frame Weight

Hemidium 1020g (47cm) +/-50g

Emerald Green 1030g (47cm) +/-50g

Raw 970g (47cm) +/-50g


Fork Weight: 390g

Accessories: Handlebar Spacers 3mm: 1PC, 5mm: 1PC, 10mm: 2PCS, Headset Bearing Cap 10mm: 1PC

                          Front Axle 1PC, Rear Axle 1PC

Limited Rider Weight: 110KG

Warranty: 6 Years


The R12's internal cable routing system, known as the ProRoute system, is designed to accommodate both mechanical and electronic groupsets. This innovative feature keeps your cables tucked away and protected, resulting in a clean, streamlined appearance and reduced maintenance.

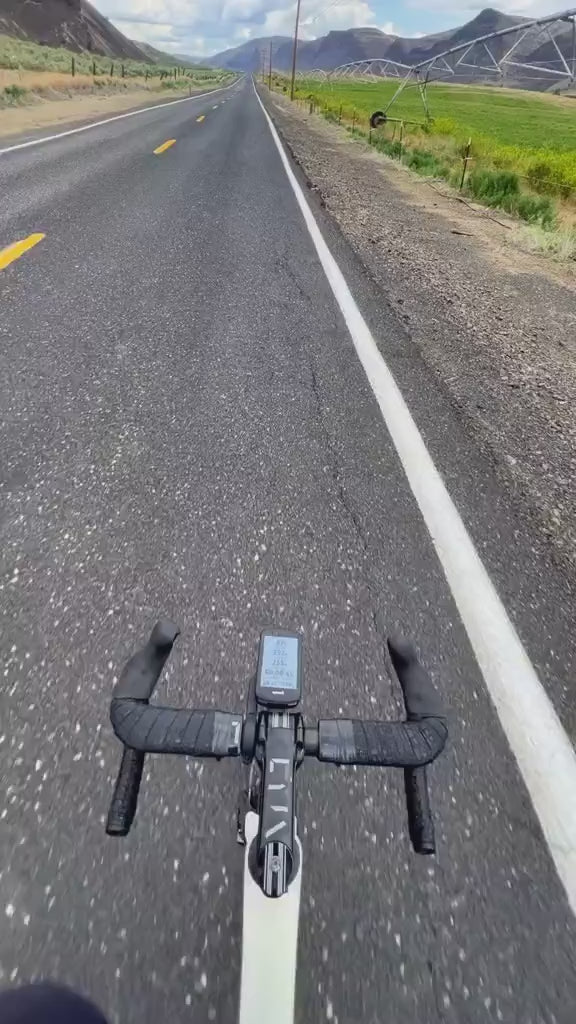

Moulded by one piece monobloc with EPS+LATEX tech makes the handlebar much stiffer and smoother internally, yet easier for cable routing.

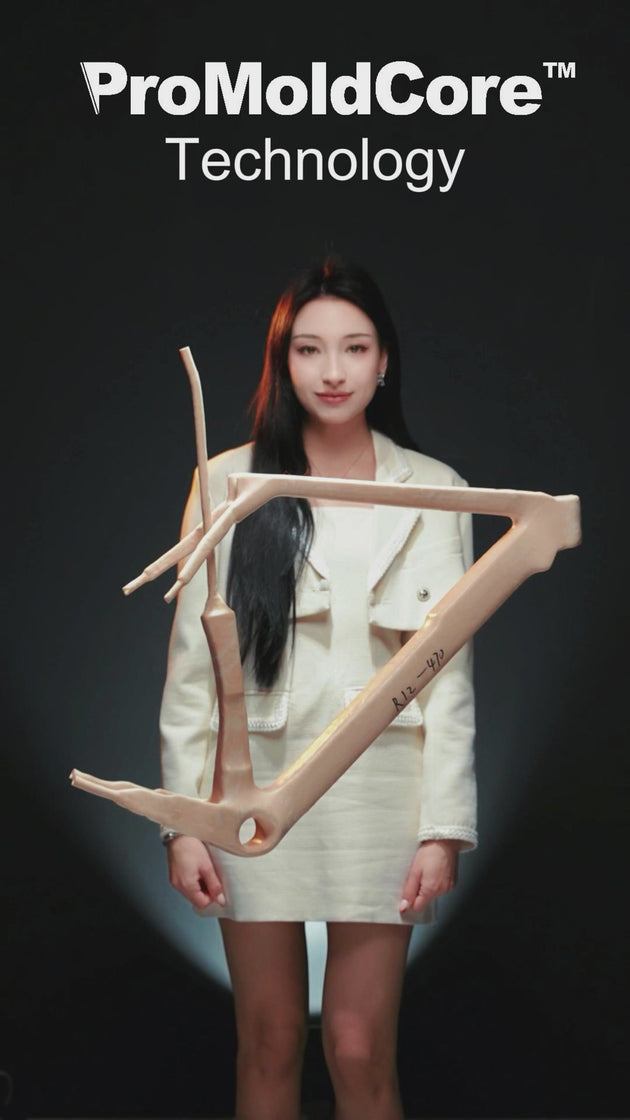

A pinnacle of manufacturing prowess, ProMoldCore technology transcends traditional methods, crafting high-end carbon fiber cycling frames with intact precision. Embrace ideal stability as latex molds the frame's interior, setting the seal on a wrinkle-free with smooth finish inside out.


The Yoeleo R12 2023 boasts a sleek, aerodynamic frame that minimizes drag and maximizes speed. Glide through the air and achieve your personal best on every ride with the R12's streamlined design.

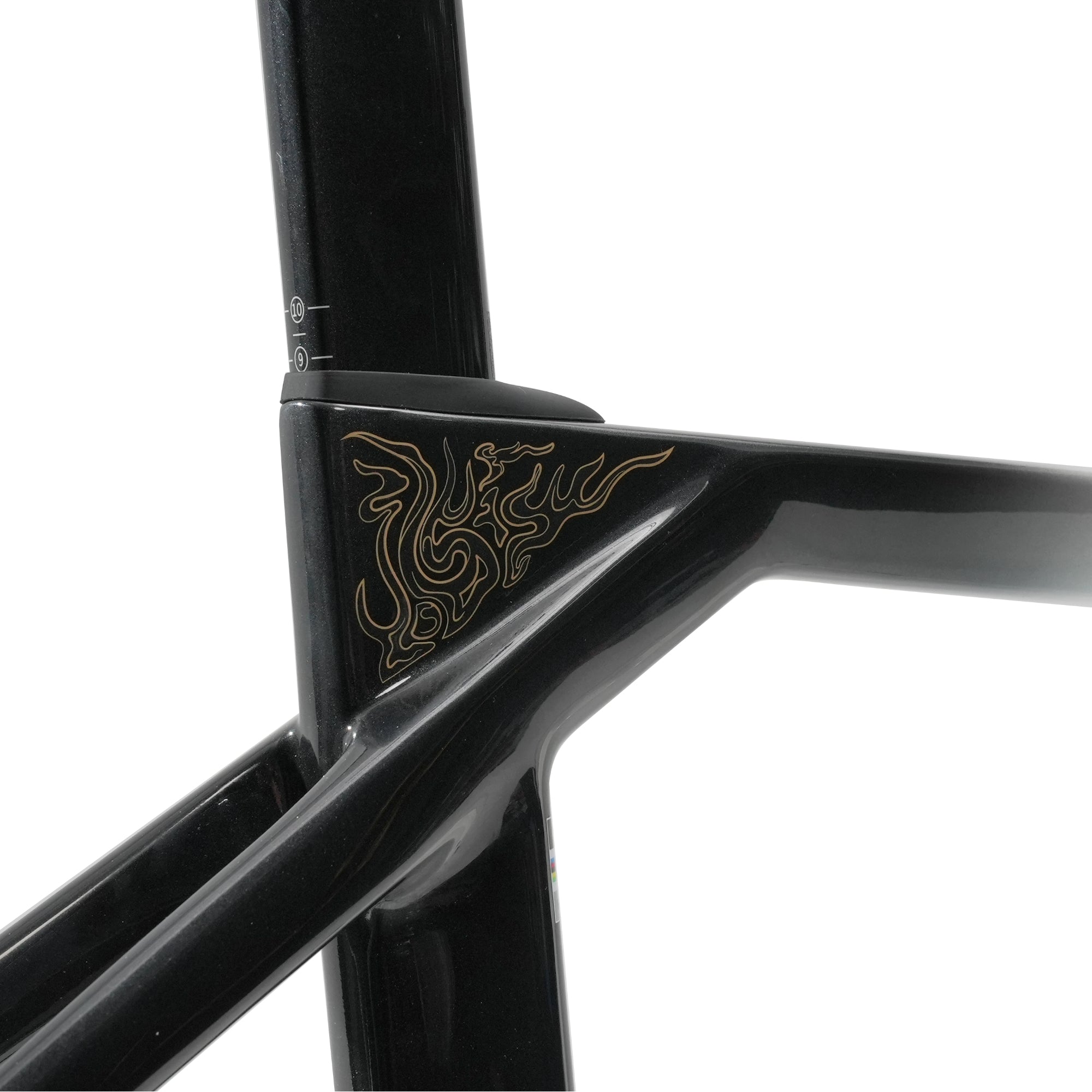

 Beautiful Frame Curves for a Visually Appealing Aesthetic

The R12's elegant frame design not only offers performance benefits but also adds a visually appealing aesthetic to the bike, making it stand out from the crowd.

Enhanced Carbon Fiber Lay-up for Optimal Stiffness :

Experience the perfect balance of stiffness and lightweight performance with the R12's enhanced carbon fiber lay-up. This upgraded feature offers increased rigidity without adding extra weight, ensuring a responsive and nimble ride on every terrain.

Discover the Yoeleo R12 2023

The Ultimate Road Bike for Performance and Style

The Yoeleo R12 2023 carbon road bike redefines performance, innovation, and style for avid cyclists and passionate riders alike. With a multitude of unique selling points and cutting-edge features, the R12 offers an unparalleled cycling experience. In this comprehensive guide, we will delve into the standout features that make the Yoeleo R12 2023 the perfect road bike for every rider.

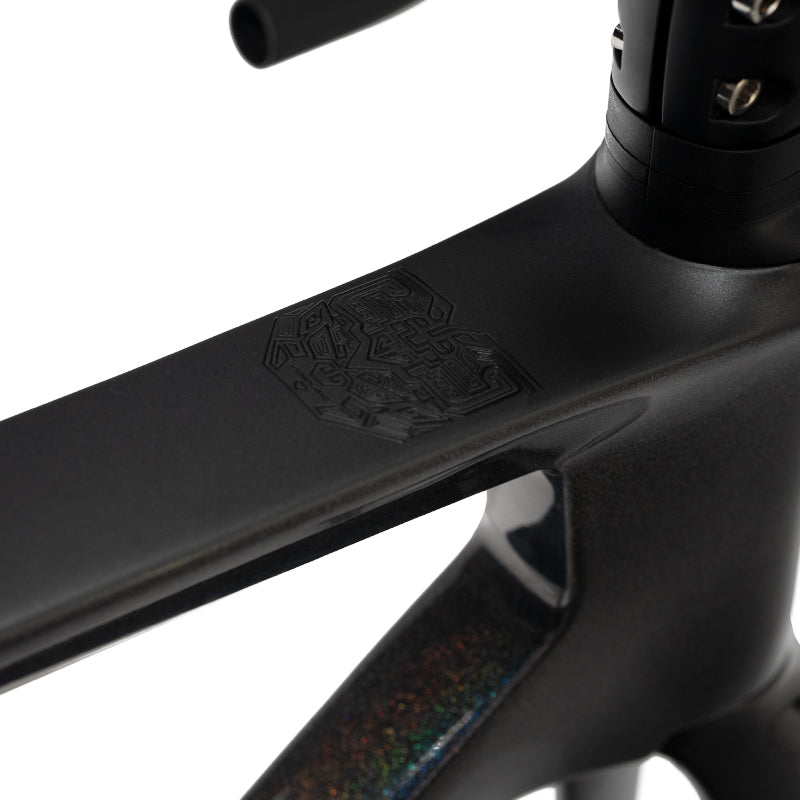

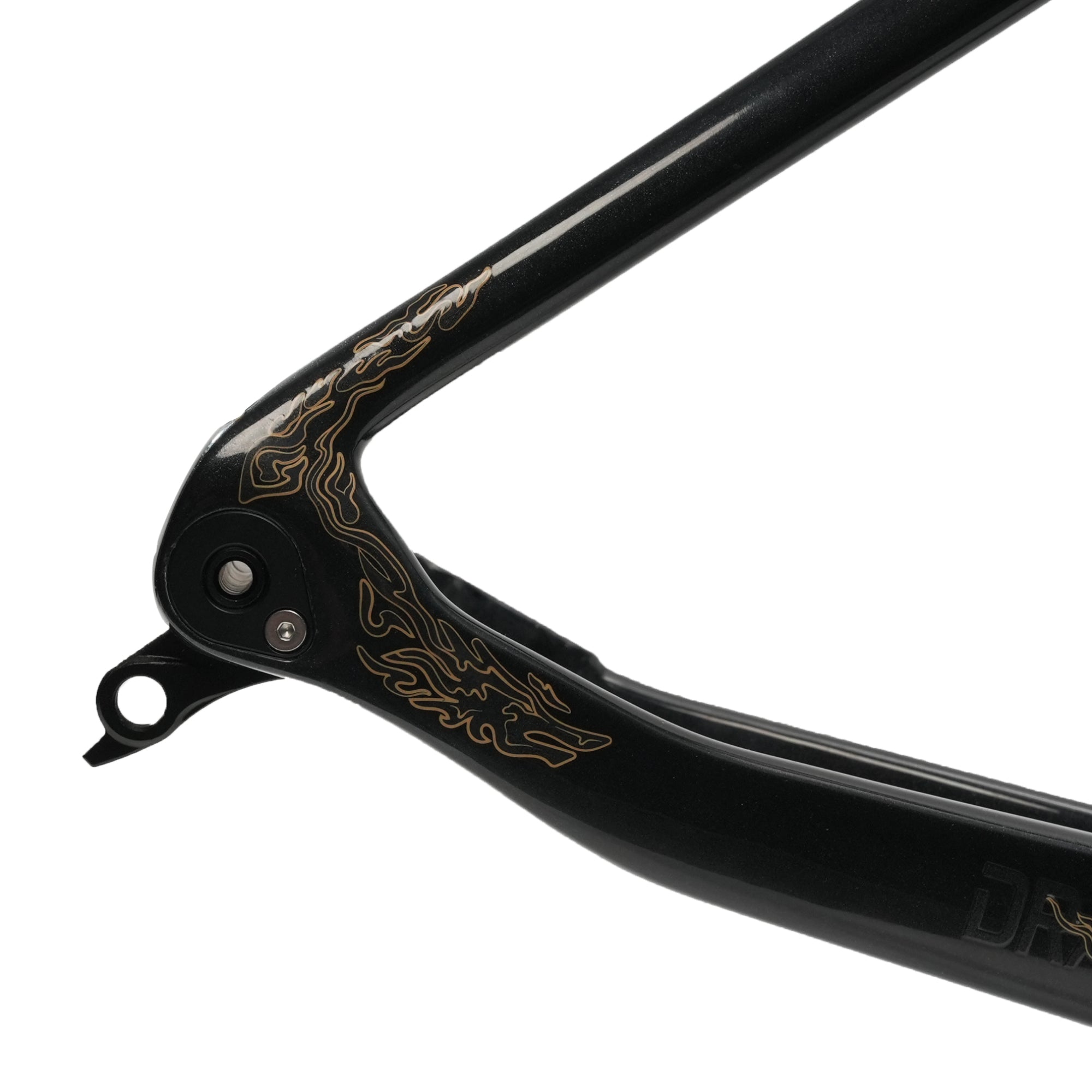

Advanced Paint Job for a Modern and Stylish Look

The R12 2023 model features a modern, stylish paint job that enhances the bike's visual appeal and highlights its innovative design features.


4Mindproject is a UCI continental cycling team who attend various UCI races throughout the year. R12 is our team machine.
