YOELEO

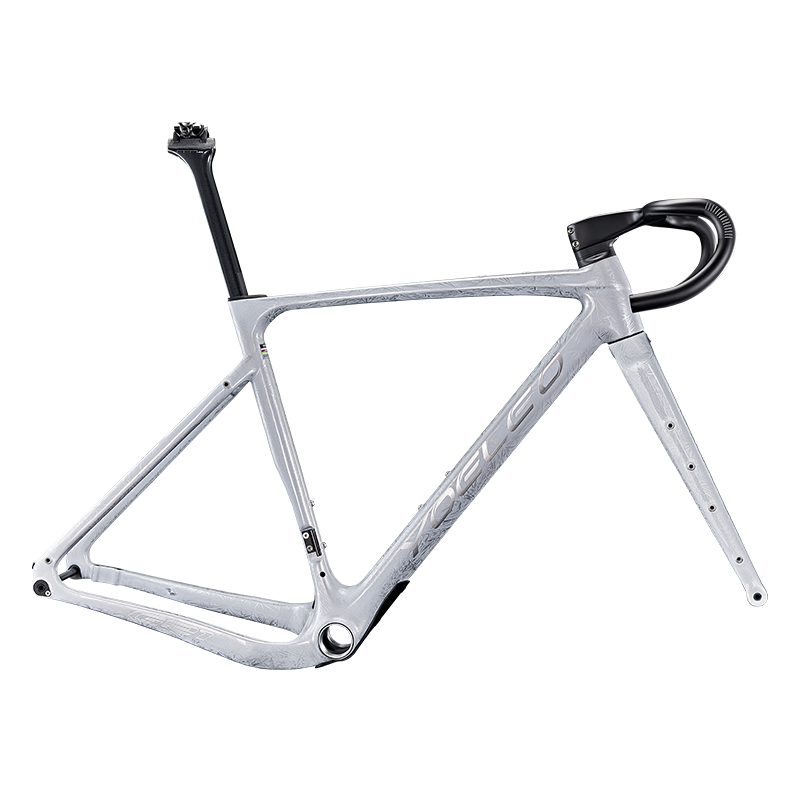

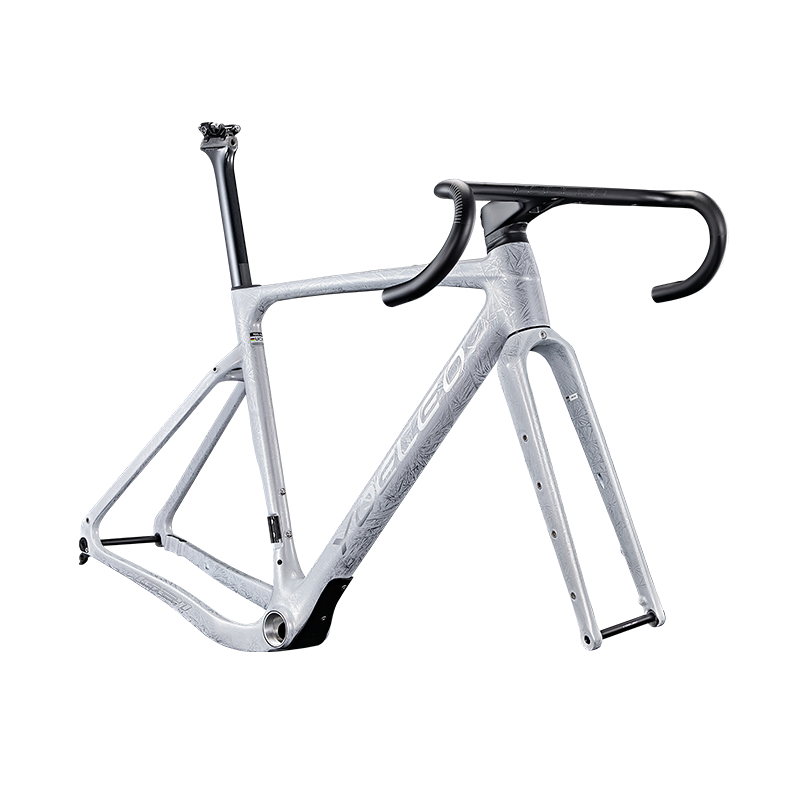

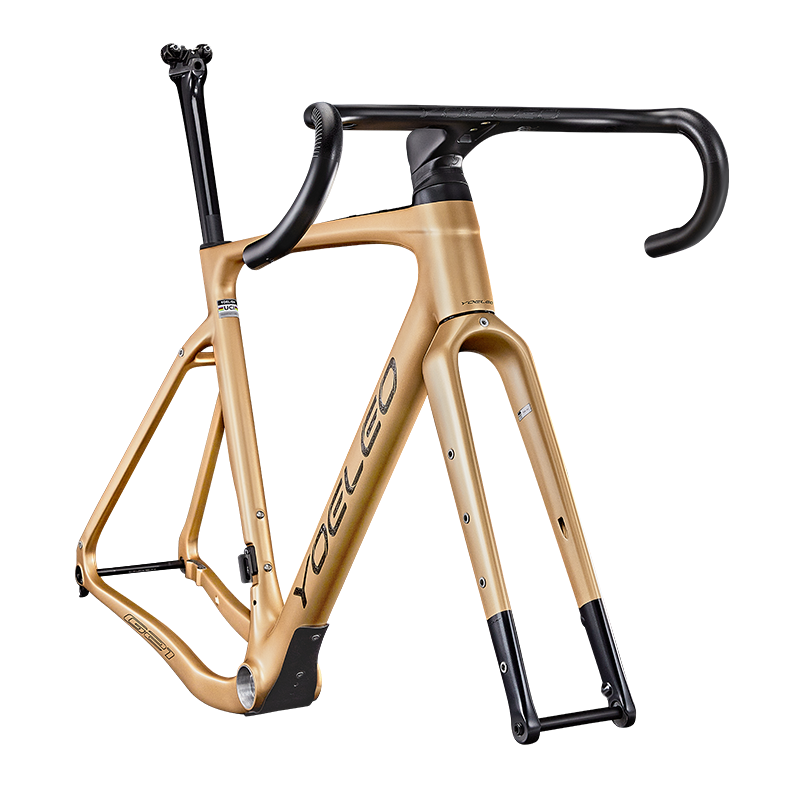

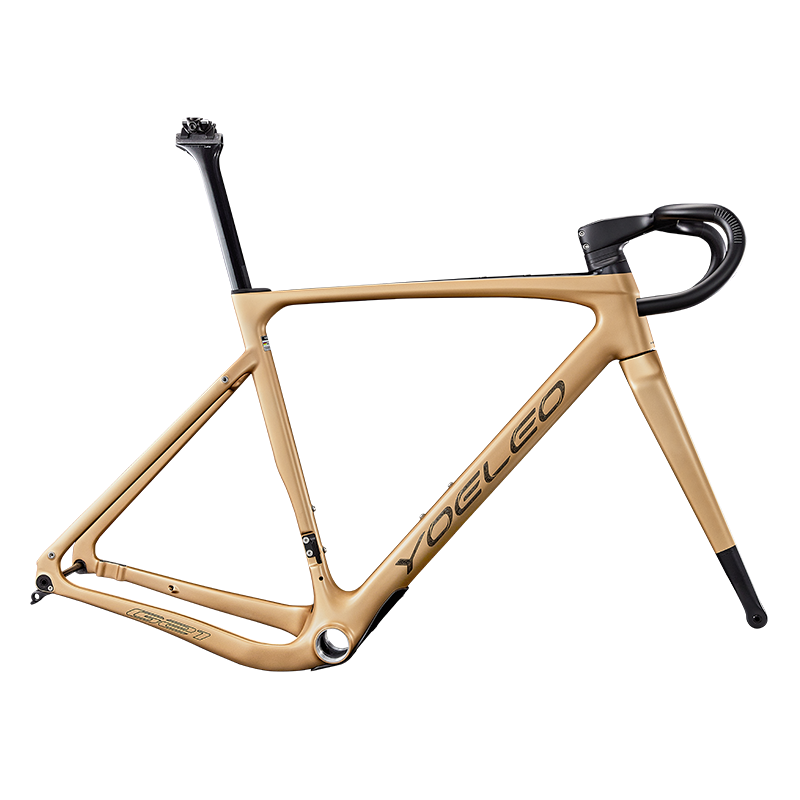

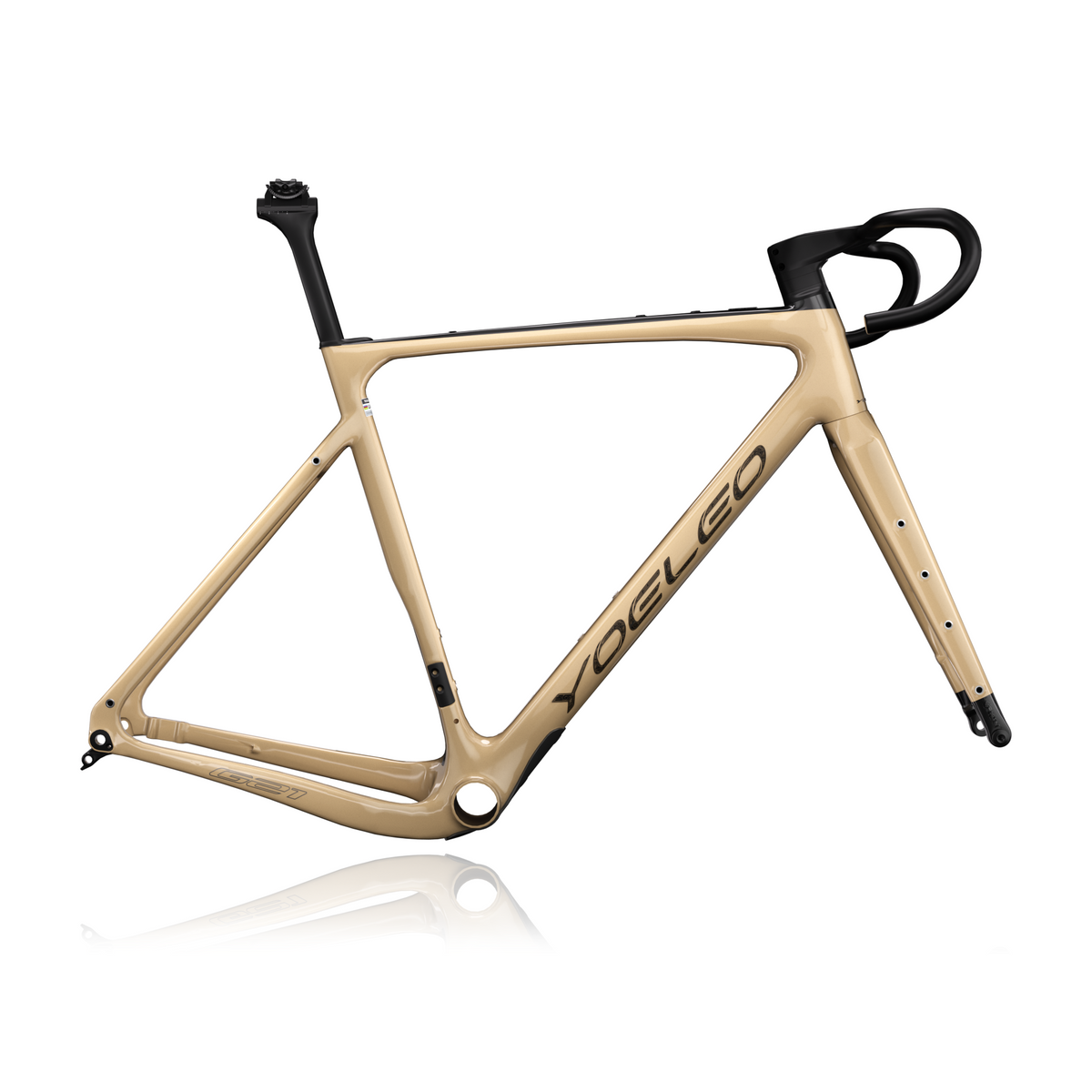

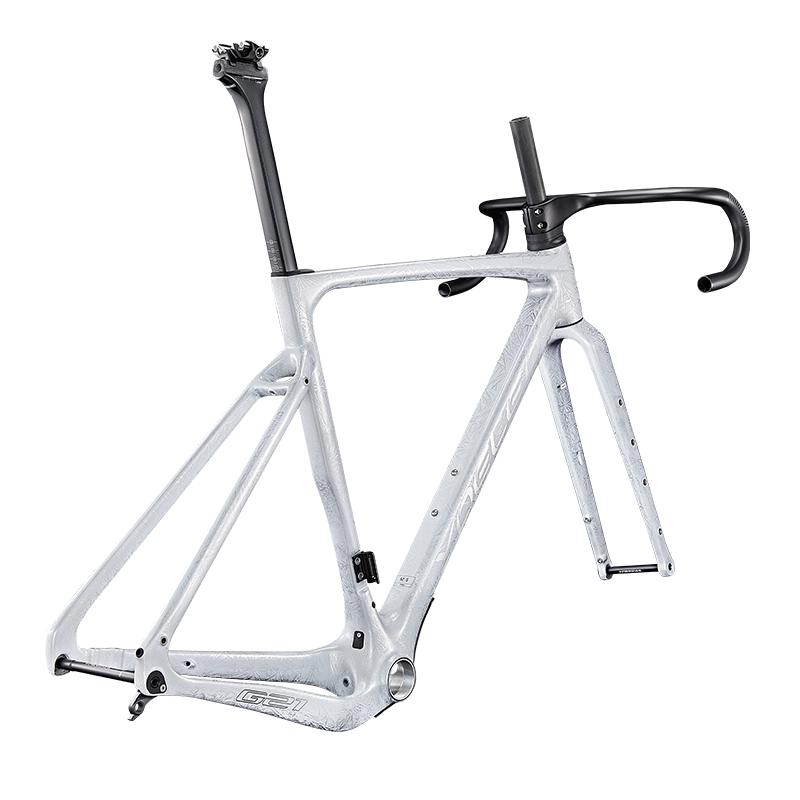

G21 DB Gravel Bike Frameset
|
|
G21 2023
|
|
UCI Approved
|
Yes
|
|
Parts Included
|
G21 Frame, Fork, Handlebar, Seatpost
|
|
|
|
|
Frame
|
|
|
Size
|
45cm,49cm, 52cm, 54cm, 56cm, 58cm, 60cm
|
|
Material
|
High Modulus Toray 800 Carbon Fiber
|
|
Color
|
Arctic Ice / Desert Brown / Custom Painting
|
|
BB
|
BB T-47 inboard bearing
|
|
|
(pick the right BB-47 depending on your crank spindle size)
E.g. if you are using GRX crank : T47 BB inboard bearing for (shimano) 24mm spindle size.
|
|
|
SRAM DUB / DUB wide crank : T47 BB inboard bearing for SRAM DUB
|
|
|
SRAM GXP : T47 BB Inboard bearing for SRAM GXP
|
|
BB Width
|
86.5mm
|
|
Headtube
|
Straight 1-1/2”
|
|
Rear Dropout
|
12*142 Thru Axle
|
|
Rear Derailleur Hanger
|
Replaceable
|
|
Frame Weight
|
Arctic Ice 1150g (49cm) +/-50g
Desert Brown 1170g (49cm) +/-50g
Raw 1050g (49cm) +/-50g
|
|
|
|
|
Handlebar
|
H21 carbon integrated handlebar
|
|
Handlebar Size
|
400mm, 420mm, 440mm
|
|
Stem Size
|
80mm, 90mm, 100mm, 110mm
|
|
Handlebar Weight
|
360+/-15g (420x90)
|
|
|
|
|
Fork & Seatpost
|
|
|
Fork
|
1 1/8" - 1 1/2", 12*100 Thru Axle
|
|
Fork Weight (Painted, 56cm frame)
|
- G21 Fork: 475+/-10 (with holes)
- G21 Fork: 465+/-10 (without holes)
|
|
Seatpost Weight
|
204+/-15g
|
|
Seatpost Shape
|
D-shaped
|
|
|
|
|
Compatibility
|
|
|
Chainring
|
- Single: Max of 42t for normal crank spindle and 44t for wide crank spindle
- Double: 50-34t max with BB to Crank washer
|
|
Brake Fitment
|
Flat Mount Disc
|
|
Cable Routing
|
Internal
|
|
Bottle Mounts
|
4
|
|
Mudguard Compatible
|
Yes
|
|
Cargo Rack Compatible
|
Yes
|
|
Max Tire Width
|
700x53mm, 650Bx2.1”
|
|
|
|
|
Accessories
|
|
|
Handlebar Spacers
|
- 3mm: 1PC
|
|
|
- 5mm: 1PC
|
|
|
- 10mm: 2PCS
|
|
Headset Bearing Cap
|
10mm: 1PC
|
|
Front Axle
|
1pc
|
|
Rear Axle
|
1pc
|
|
Limited Rider Weight
|
110KG
|
|
Warranty
|
6 Years
|
Warranty
Standard Coverage: 6-year warranty
Extended Option: AdditionalLifetime warrantyavailable for US$300
Crash Replacement Policy
YOUR SAFETY MATTERS
While we sincerely hope you won't require it, we provide a 30% crash replacement discount on all handlebars and spares in the unfortunate event of a crash. Reach out to us, and we'll strive to assist you promptly, ensuring you can get back on the road and ride again as soon as possible.
Riding into the future of gravel biking, the G21 is our newest masterpiece. Packed with optimized features for an unbeatable gravel and adventure riding experience, the G21 stands tall as a testament to our commitment to innovation, performance, and rider-centric design.
MORE THAN VERSATILE
With the ability to accommodate tire sizes up to 53c, the G21 redefines versatility. You can effortlessly adapt to different terrains and conditions, amplifying G21's all-around performance and making it the only bike you'll ever need for any adventure.
YOELEO PROROUTE SYSTEM
The ProRoute Stem System introduces dual mounting solution for internal cable routing, catering to both the complete internal cable routing (Y-ICR) and the semi-internal cable routing (S-YICR) with sleek, removable spacers. This design ensures hassle-free installation.
ALL-TERRAIN CAPABILITY
Any frame can take on any terrain, but G21 doesn't take on various terrain – it conquers all of them. Its robust construction and wide tire clearance allow it to run on anything, from smoothest roads to the toughest trails. Any frame can take on any terrain, but nothing like G21 does.
MORE COMFORT WITH EXTRA COMPLIANCE
Combining the D-shaped seatpost and our new slider saddle-clamp design, it will be much easier for you to adjust your position and be comfortable. This design will also keep you safe on gravel roads as it prevents the saddle from accidentally tilting, while giving you some more extra compliance.
OPTIMIZED GEOMETRY FOR UNMATCHED STABILITY
Yoeleo G21's geometry is optimized for gravel and packed with features that will ensure stability on the road; a longer wheelbase, slack headtube angle, and shorter stem promises exceptional stability and comfort on even the most uneven terrains. G21 allows you to be in full control of the roads you're traversing no matter the conditions.
All-Terrain Capabiility
The G21 seamlessly combines speed, stability, and comfort, empowering you to conquer challenging terrains and embark on journeys where every turn is a new discovery. Embrace the freedom to race, explore, and conquer with the G21.

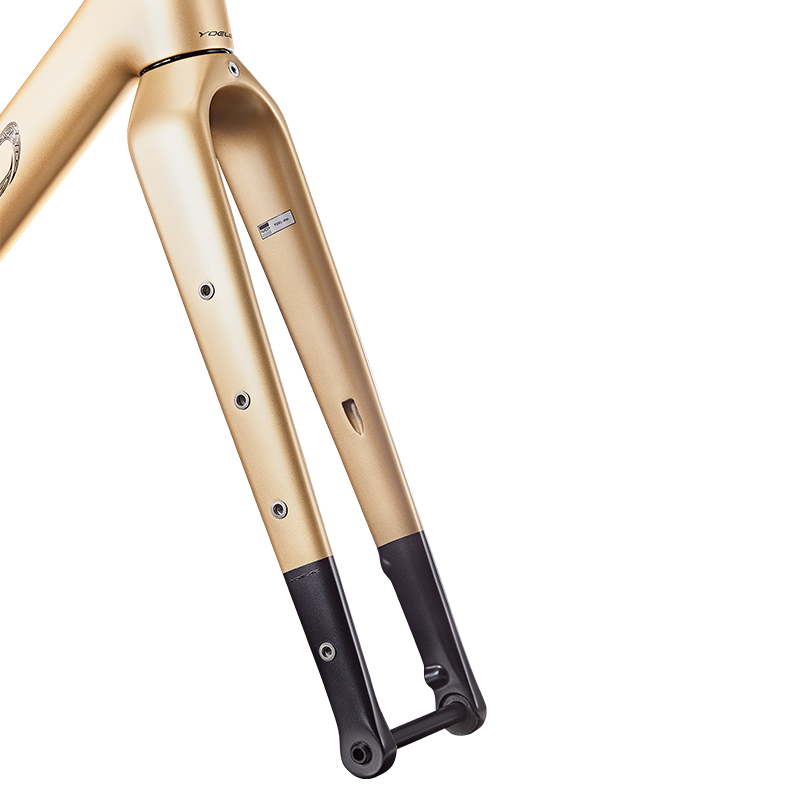

Two Fork Options
Whether you opt for a fork with holes or without, the choice is yours to make based on your bikepacking needs. The fork with holes provides added versatility, allowing for front load attachment and pannier installation, perfect for those seeking to carry more luggage. Whether you prefer a minimalist setup or a fully-equipped adventure, the decision is in your hands.
THE FUTURE OF FRAMES IN OUR WAY
ProMoldCore Technology
Conventional manufacturing methods often result in internal frame undulations and added weight, which can hinder performance and compliance with carbon sheet specifications. Unlike conventional methods like nylon bladders, ProMoldCore technology offers extra molding precision using latex's flexibility. This ensures consistency between the inner and outer surfaces of carbon road frames, delivering a smooth, wrinkle-free finish internally. Latex boosts pressure, enhancing internal finish, reducing resin waste, and enabling intricate shapes.
Feel The Pro-Like Experience
ProMoldCore & ProOne Technology
Integrating ProMoldCore and ProOne Technology into the production of our handlebars has earned them renown for their stiffness. Enjoy hassle-free cable installation as latex molds the bar's interior, ensuring seamless routing with a sleek finish. By using a one-piece, no-bond production method, and high-grade carbon fiber combined with our enhanced lay-up technique, we remove excess weight and flex commonly found in conventionally-made bars.
Integrated or With Stem
It's all up to you to lead your way. Choose between the integrated H21 or the ST1+H25 stem with handlebar option for the G21.
H25
Integrated Handlebar
Stem+Bar
ST1+H25
Gravel Optimized. Outstanding Stability.
G21's Frame Geometry
| 45 | 49 | 52 | 54 | 56 | 58 | 60 | ||
| Size Recommendation | Rider Height | 160cm-168cm | 165cm-175cm | 172cm-180cm | 177cm-185cm | 182cm-190cm | 187cm-196cm | 193cm-201cm |
| A | SEAT TUBE LENGTH(mm) | 450 | 490 | 520 | 540 | 560 | 580 | 610 |
| B | TOP TUBE LENGTH(mm) | 510 | 515 | 536.4 | 551 | 566 | 577 | 592 |
| C | REACH(mm) | 373 | 373 | 379 | 383 | 387 | 390 | 396 |
| D | STACK(mm) | 512 | 531 | 549 | 566 | 586 | 611 | 640 |
| E | HEAD TUBE LENGTH(mm) | 79 | 98.5 | 107 | 134 | 145 | 171 | 200 |
| F | SEAT TUBE ANGLE | 75° | 75.0° | 74.0° | 73.5° | 73° | 73.0° | 73.0° |
| G | HEAD TUBE ANGLE | 69° | 69.5° | 70° | 70° | 72.2° | 72.3° | 72.6° |
| H | BOTTOM BRACKET DROP(mm) | 79 | 79 | 79 | 79 | 79 | 79 | 79 |
| I | CHAIN STAY LENGTH(mm) | 433 | 433 | 433 | 433 | 433 | 433 | 433 |
| L | FORK RAKE(mm) | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
| M | FORK LENGTH(mm) | 401.5 | 401.5 | 401.5 | 401.5 | 401.5 | 401.5 | 401.5 |
Be Yourself Project
From glossy to matte finishes, simple or complex patterns, we’ll bring your ideas and creativity to life!
Explore the magic of our gradation option that smoothly transitions between two color choices, creating a beautiful, gradual color fade on your frame.
Decals color options : Silver, White, Black.
It is for those who appreciate the dynamics of color interplay and aren't afraid to break the norms in pursuit of their individual style.
Decal color options: Silver, White, Black
Embrace simplicity with our single-color paint option. Make a statement with just one bold, vibrant color.
Decal color options : Silver, White, Black
Ask our designer to collaborate for fully customized design. Turning your artistic vision into a riding masterpiece
G21 Riders Around the World
Understanding Our Product
Find answers to your questions about our product here:
Tire Compatibility
The G21 accommodates a 53c gravel tire or a 2.0 MTB 29 tire. Select the right tire to enhance your ride's performance and comfort based on the terrain you're tackling.
Chainring Options
- Single: Fits up to 42T for standard cranks and up to 44T for wide crank spindles.
- Double: Accommodates a maximum of 50-34T with a BB to Crank washer.
Bottom Bracket Specs
- Our G21 uses a BB T-47 inboard bearing. Choose based on your crank spindle size:
Shimano GRX Crank: T47 BB inboard bearing for a 24mm spindle. - SRAM DUB / DUB Wide Crank: T47 BB inboard bearing for SRAM DUB.
- SRAM GXP: T47 BB Inboard bearing for SRAM GXP.
Fork Customization
Opt for a fork with mounting holes for front panniers or choose a seamless fork for improved aerodynamics.
Stem and Handlebar Combo
Yes, you can use a stem and handlebar combo. We recommend our ST1 stem with the H25 handlebar for a seamless integration.
