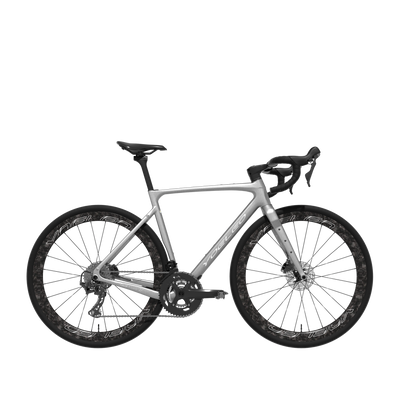

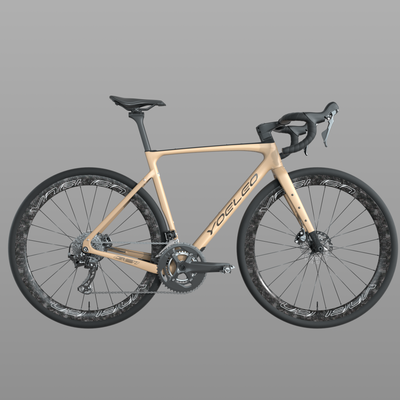

G21 DB PRO Gravel Bike
Regular price $4,400.00
Unit price per
Color: Chromatic Grey / Baltic Red / Blue Spectrum / Pink Opal / White Frost
Frame:
YOELEO G21 Gravel Frame
Material: High Modulus Toray 800 Carbon Fiber
Rear Dropout: 12*142mm Through Axle
Rear Derailleur Hook: Replaceable
Weight: 980g+/-50g (49cm)
Fork
YOELEO G21 Fork
Material: Carbon
Head Tube: 1-1/2" Straight
Axle Dimension: 12 x 100 mm
Brake: Flat Mount
Weight: 420g+/-15g
Handlebar
YOELEO H21 Handlebar
Handlebar Size: 400mm/420mm/440mm
Stem Size: 90mm/100mm/110mm/120mm
Weight: 340g+/-15g (420x90)
Groupset
Shifter: Shimano GRX RX810
Front Derailleur: FD-RX810-F, 2x11 speed
Rear Derailleur: Shimano GRX-RD-RX810
Crank: Shimano FC-RX810-2, 2x11 speed
Cassette: Shimano HG700, 11 speed
Chain: Shimano CN-HG701
Brake: SHIMANO GRX Hydraulic Disc Brake Caliper
Rotor: Front 160mm/Rear 160mm
Wheelset
SAT C35|35 DB PRO OFFSET CX/GRAVEL
Thru Axle: 12*100/12*142
KENDA Tires 700*45C
Limited Rider Weight: 110KG
Warranty: 3 Years
Geometry:
|
Size |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
|
49cm |
490 |
515 |
373 |
531 |
90 |
75.0° |
71.4° |
79 |
433 |
579.7 |
1000 |
47 |
401.5 |
|
52cm |
520 |
536.4 |
379 |
549 |
107 |
74.0° |
71.6° |
79 |
430 |
590.9 |
1008.9 |
47 |
401.5 |
|
54cm |
540 |
551 |
383 |
566 |
126 |
73.5° |
71.8° |
79 |
433 |
598.1 |
1018.6 |
47 |
401.5 |
|
56cm |
560 |
566 |
387 |
586 |
145 |
73° |
72.2° |
79 |
433 |
603.2 |
1024.6 |
47 |
401.5 |
|
58cm |
580 |
577 |
390 |
611 |
171 |
73.0° |
72.3° |
79 |
433 |
614.3 |
1034.9 |
47 |
401.5 |
|
60cm |
610 |
592 |
396 |
640 |
200 |
73.0° |
72.6° |
79 |
433 |
626.2 |
1046.9 |
47 |
401.5 |
Sizing & Fit:
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.
That’s why you’ll see some overlap in our recommendations.
| Size | XXS 49CM |
XS 52CM |
S 54CM |
M 56CM |
L 58CM |
XL 60CM |
| Rider Height |
166-172CM 5'5.3"-5'7.7" |
172-178CM 5'8.1"-5'10" |
178-184CM 5'10"-6'0.4" |
184-190CM 6'0.4"-6'2.8" |
190-196CM 6'2.8"-6'5.1" |
>196CM >6'5.1" |
SAFETY EQUALS QUALITY
We have strict quality control process to ensure the excellent frameset quality.
1.Test di fatica della pedalata: carica 1100 N, 100000 cicli
2.Vertical Fatigue Test: Load 1200N , 50000 Cycles
3.Horizontal Fatigue Test: Load 600N , 100000 Cycles
4.Vibration Fatigue Test: load ST:20KG,BB:40kg,HT:10kg , 30000 Cycles
5.Impact Test (Falling Mass): Falling height 212mm, farmar weight: 22.5 KG.
6.Rigid Test (Falling Frame): Load ST:30KG, BB:50kg, HT:10kg, 2 Cycles
Safety equals Quality
100,000 Cycle fatigue test with no damage
72cm Drop impact test with both drop loaded by weight, replicate heavy sprinting, no damage.
We have very strict quality control for all YOELEO products, because safety is always our number one priority.
Spacer Adaptor to Fit Most of Internal Cable Routing Frame
We provide different adaptors to fit different carbon frames, if your carbon frame model is not in the options,please be free to contact us for more details.
FULLY INTERNAL CABLING
Internal cable routing results in external clean lines and improved aerodynamics with the cables completely hidden from view within our fully internal H21 integrated handlebar. The internal cable routing system is not only adding to the aesthetic qualities of the frame, but also makes cleaning the frame a simpler process.
TONS OF MOUNTS
This G21 has tons of mounting for bottle cages, fork panniers, rear panniers, and mudguards on both front and rear sides. We even make the front triangle high enough to ensure riders can mount a frame bag without sacrificing two bottle carrying capacity on the bike.
MASSIVE TIRE CLEARANCE
Up to 53c means you can fit a MTB 29 inch tire when you need to tackle bigger obstacles or to ride in very challenging terrain. However, smaller tire sizes like 45c are recommended for muddy condition rides and for a bike setup with mud guards to ensure there is enough room for mud built-up during the ride.
EXTRA COMPLIANCE FOR BETTER CONTROL
We purposely choose D-Shaped seatpost to give the rider a little bit of compliance on the rough road surface, combined with a bigger tire to act as its main suspension. G21 allows the rider to ignore small obstacles and focus on bike control.
EPS+LATEX Production Tech
For Handlebar and Frame
As previously mentioned the G21 is moulded by new manufacturing process called EPS+Latex Tech. Unlike traditional methods like nylon bladders, latex is very flexible and can stretch, so the inside of the frame can be moulded more consistently. This new tech makes G21 incredibly smooth internally eliminating fold lines and creases for a more uniformed internal wall smoothness resulting in a stronger frame. It also simplifies the cable routing process and with this new tech, the frameset weight remains lower due to the extra resin overflow rate is higher and spreads more evenly during the moulding process.
Our H21 gravel handlebar are using the same tech as well.
PROGRESSIVE GEOMETRY
Implementing a proven gravel geometry, G21 feels nimble and stable on the high speed like a road bike. At the same time, it provides the rider confidence to ride on the rough surface and steep descent, thanks to its wheelbase and 67mm mechanical trail.
LIGHTWEIGHT
G21 MONSTER GRAVEL
EXPLORE NATURE, CONQUER CHALLENGES
G21 is good chooice for gravel racing or long-distance gravel riding
